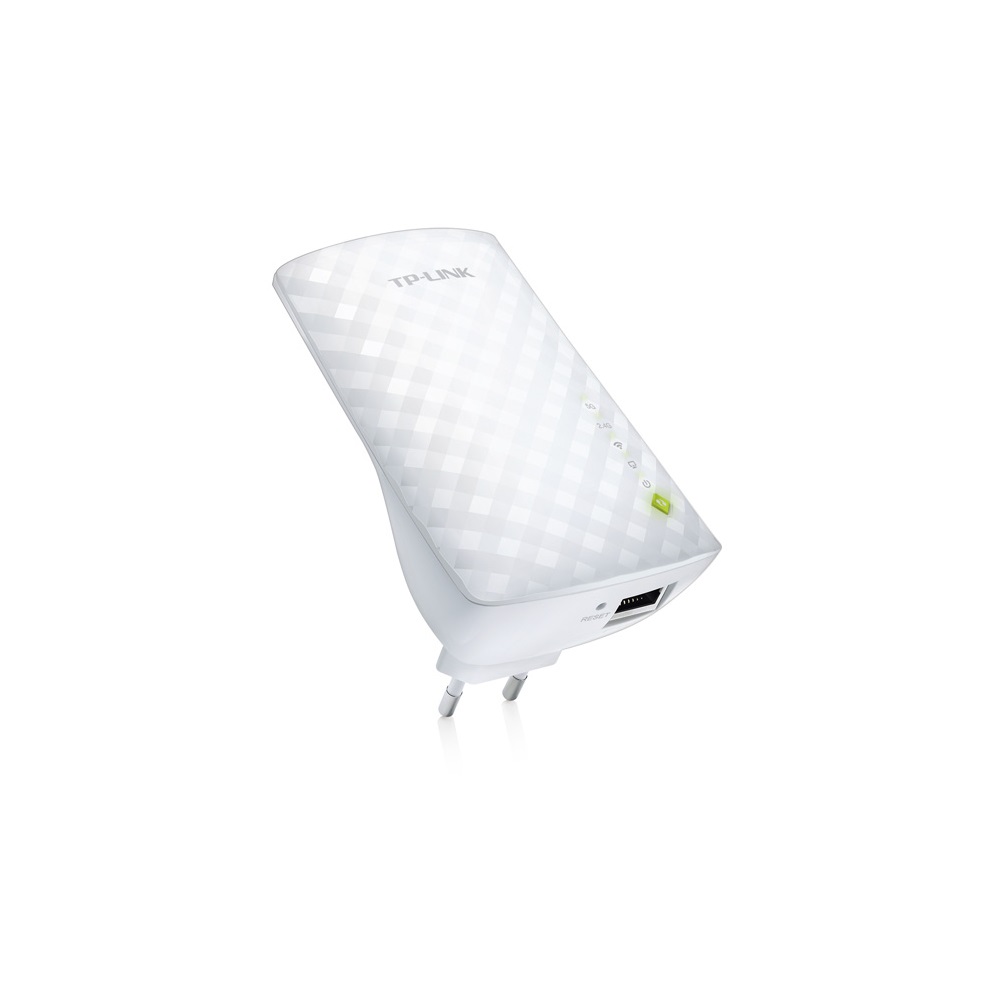

Wi-Fi Range Extender AC750

Description

Entertainment Adapter - Act as a wireless adapter to connect wired devices while sharing wireless network at the same time.

Easy Two Touch Setup - Press the WPS button on your router and the button on your extender to set up in seconds

Intelligent Signal Indicator - Find the best location for your range extender

Details and Specifications

HARDWARE FEATURES
Standards and Protocols IEEE802.11ac,IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Interface 1 * 10/100M Ethernet Port (RJ45)
Plug Type EU, UK, US, AU
Button RE (Range Extender) Button, Reset Button
Antenna 3 * internal
Dimensions ( W x D x H ) 4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)
Power Consumption About 6.5W
WIRELESS FEATURES
Frequency 2.4GHz & 5GHz
Signal Rate 5GHz:Up to 433Mbps
2.4GHz:Up to 300Mpbs
Transmit Power < 20 dBm (EIRP)
Reception Sensitivity 2.4G:
270M: -70dBm@10% PER
130M: -70dBm@10% PER
108M: -73dBm@10% PER
54M: -75dBm@10% PER
11M: -86dBm@8% PER
6M: -92dBm@10% PER
1M: -94dBm@8% PER
5G:
390M: -60dBm@10% PER
29.3M: -83dBm@10% PER
180M: -64dBm@10% PER
13.5M: -87dBm@10% PER
78M: -68dBm@10% PER
6.5M: -90dBm@10% PER
54M: -75dBm@10% PER
6M?-90dBm@10% PER
Wireless Modes Range Extender
Wireless Functions WMM (Wi-Fi Multimedia)
Wireless Statistic
Domain Login Function
Wireless Security 64/128/152-bit WEP
WPA-PSK / WPA2-PSK
OTHERS
Certification CE, FCC, RoHS
Package Contents AC750 WiFi Range Extender RE200
RJ-45 Ethernet Cable
Resource CD
Quick Installation Guide
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, Mac® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
