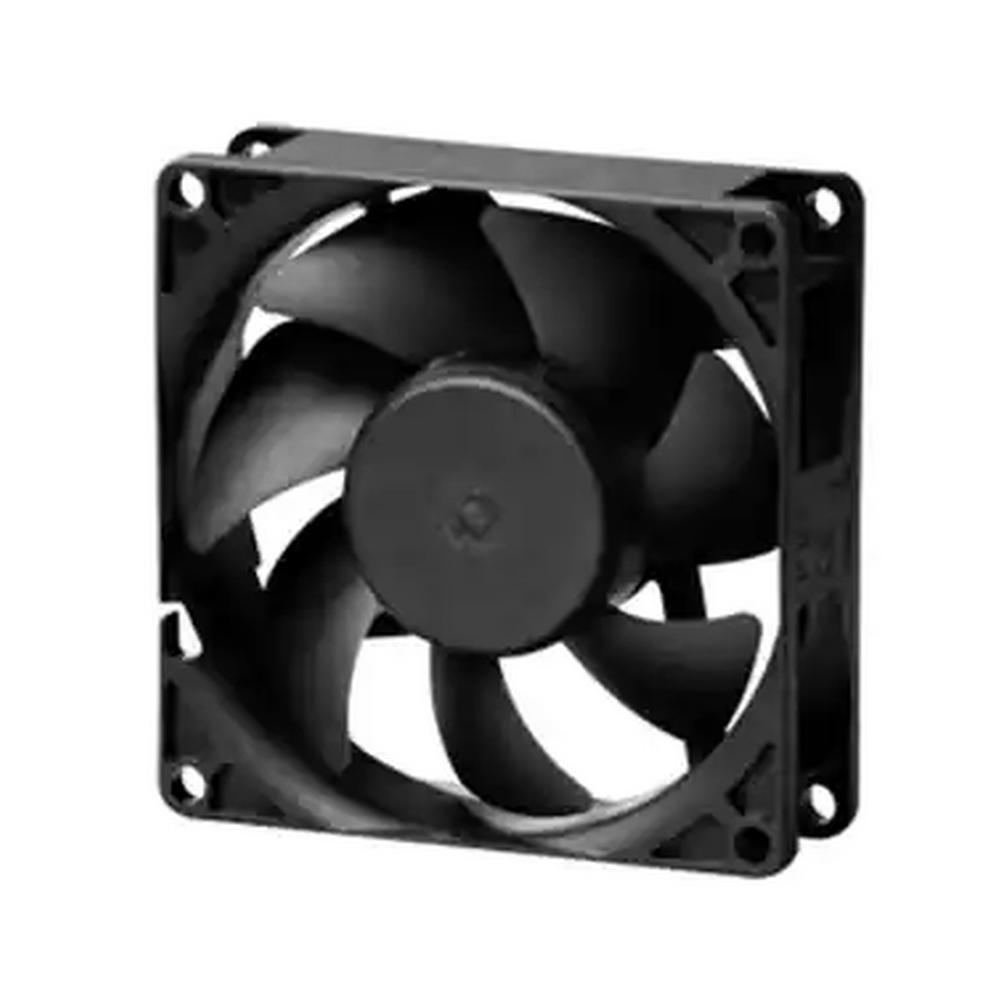

AXIAL FAN 24VDC SQUARE - 80MM L X 80MM 41 CFM
Web N°: 41-0515
$24.95
AXIAL FAN 24VDC SQUARE - 80MM L X 80MM 41 CFM
Web N°: 41-0515
$24.95
Description
Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Vapo-Bearing™ 41.0 CFM (1.15m³/min) 2 Wire Leads
Details and Specifications
|
Voltage - Rated
|
24VDC
|
|
Size / Dimension
|
Square - 80mm L x 80mm H
|
|
Width
|
25.00mm
|
|
Air Flow
|
41.0 CFM (1.15m³/min)
|
|
Static Pressure
|
0.180 in H2O (44.8 Pa)
|
|
Bearing Type
|
Vapo-Bearing™
|
|
Fan Type
|
Tubeaxial
|
|
Features
|
Auto Restart
|
|
Noise
|
33.0dB(A)
|
|
Power (Watts)
|
1.56 W
|
|
RPM
|
3200 RPM
|
|
Termination
|
2 Wire Leads
|
|
Operating Temperature
|
14 ~ 158°F (-10 ~ 70°C)
|
|
Approval Agency
|
cURus, TUV
|
|
Weight
|
0.167 lb (75.75 g)
|
|
Current Rating (Amps)
|
0.065A
|
|
Voltage Range
|
8 ~ 27.6VDC
|
|
Material - Frame
|
Polybutylene Terephthalate (PBT)
|
|
Material - Blade
|
Polybutylene Terephthalate (PBT)
|
|
Lifetime @ Temp.
|
70000 Hrs @ 40°C
|
