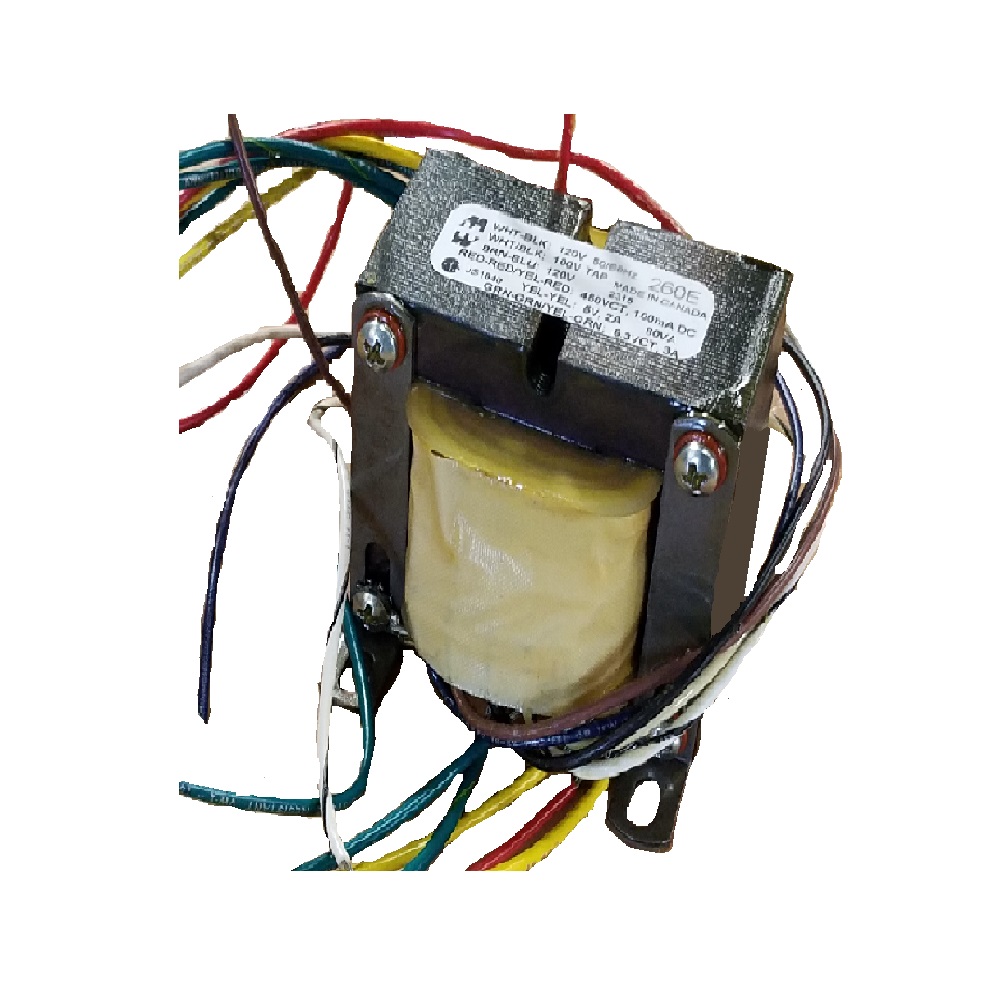

Classic Chassis Mount Transformer - 80VA
Web N°: 40-0360
$119.95
Classic Chassis Mount Transformer - 80VA
Web N°: 40-0360
$119.95
Description
- Universal primary with taps for 100, 120, 220 or 240 VAC, 50/60 Hz.
- Designed for preamps, low power amps, general replacement, test equipment, etc.
- Economical, open frame, chassis mount
- four hole mounting - Units include a Faraday shield between the primary and secondary windings.
- Our electrostatic shield reduces the capacitive coupling from the primary
- greatly attenuating higher frequency current coupling to the secondaries. - Minimum 5" long leads.
- 80VA A.C. high voltage secondary #1: 450V RMS C.T. @ 115mA
- A.C. filament secondary #2: 5V RMS @ 2A
- A.C. filament secondary #3: 6.3V RMS C.T. @ 3A
- Dimensions: 3.00 x 2.53 x 2.40"
