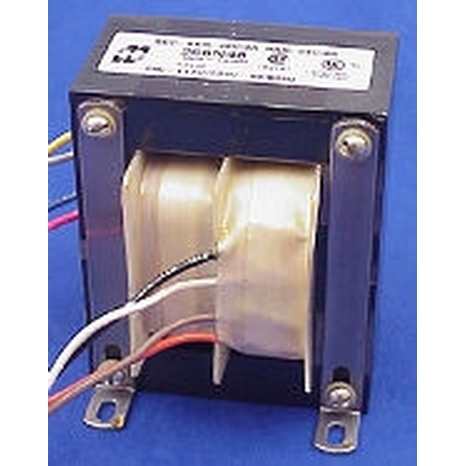

Dual Primary / Dual Secondary L.V. Chassis Mount Power Supply - 96VA
Web N°: 40-0069
$119.95
Dual Primary / Dual Secondary L.V. Chassis Mount Power Supply - 96VA

Dual Primary / Dual Secondary L.V. Chassis Mount Power Supply - 96VA

Web N°: 40-0069
$119.95

Quantity available : 1

Share
Add to my wish list

* Prices are in Canadian dollars. Taxes and shipping not included.

Our Store

Description

  • Series (C.T.) Secondary VAC (RMS): 24V @ 4A
  • Parallel Secondary VAC (RMS): 12V @ 8A
  • Primary: 117/234 VAC, 50/60 Hz
  • All units have dual secondaries Secondaries can be used as; a center tapped secondary, parallel connected or used individually.
  • Open style 6" long leads
  • Dual bobbin design
    - no electrostatic shield required
  • Class B insulation (130 degrees, C) for extra protection
  • UL listed as a Class A (105 degree, C) design
  • Hi-Pot test of 2,000V RMS.
  • UL listed (# E50394) Type 3AH CSA certified (# LR3902)
  • Dimensions (inches): 2.81 x 3.06 x 3.88 x 2.25 x 2.5
  • Mounting hole (inches): 0.203 x 0.375
  • Weight (lbs.): 4.4
