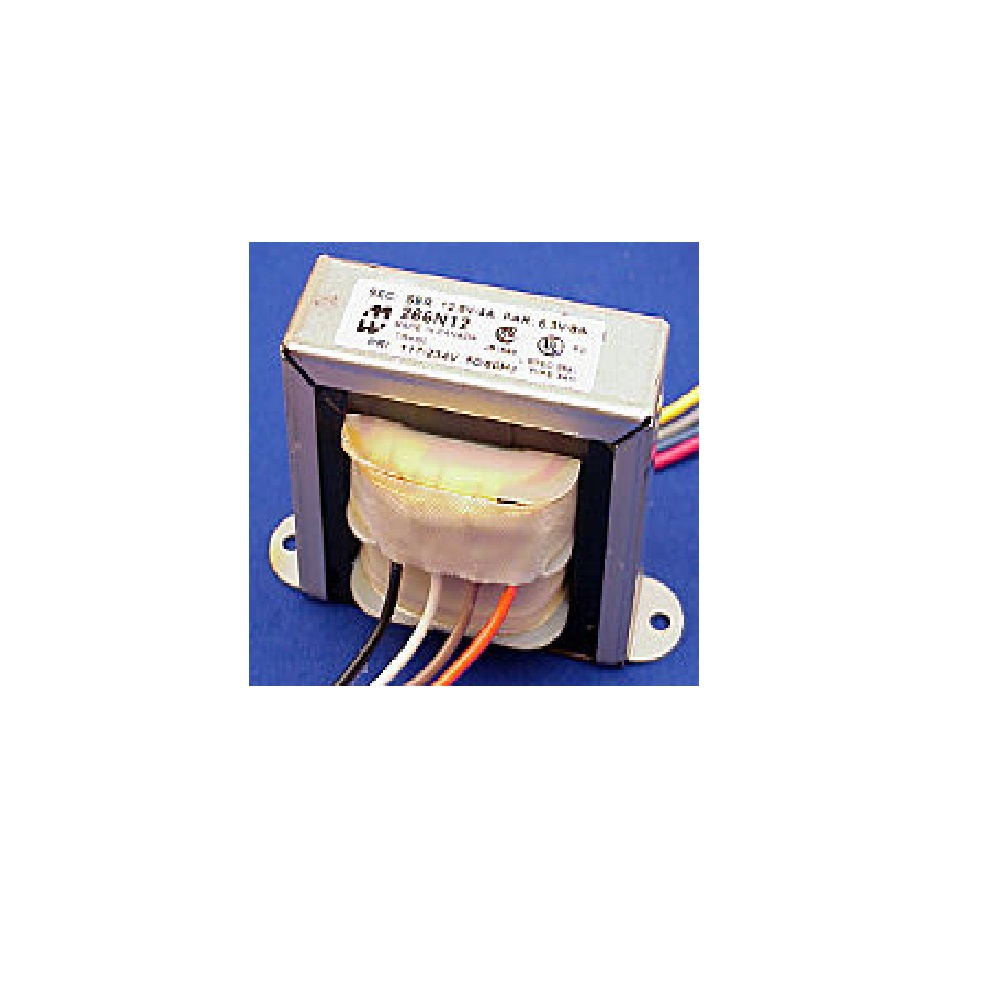

Low Voltage/Filament, Dual Primary & Secondary 110-220V to 24-12Vac 10A

Description

• Primary 117/234 VAC, 50/60 Hz.
• All units have dual secondaries except 266LA25 (C.T. secondary only). If you only require a single primary & secondary check out our more economical 166 Series.
• Secondaries can be used as; a center tapped secondary, parallel connected or used individually (except 266LA25).
• Units are designed for use with all windings engaged.
• Open style.
• Minimum 6" long leads.
• Dual bobbin design - no electrostatic shield required.
• We use Class B insulation (130 degrees, C) for extra protection - UL listed as a Class A (105 degree, C) design
• Hi-Pot test of 2,000V RMS.
• UL listed (# E207860) Type 3AH
• CSA certified (209651)
