110-220 to 12.6VCT 1A Transformer (12.6VA)
Web N°: 40-0503
$59.95
110-220 to 12.6VCT 1A Transformer (12.6VA)
Web N°: 40-0503
$59.95
Description
- Power: 12.6VA
- Primary: 117/234 VAC, 50/60Hz
- Secondary CT: 12.6V @ 1A
- Secondary parallel : 2x 6.3V @ 2A

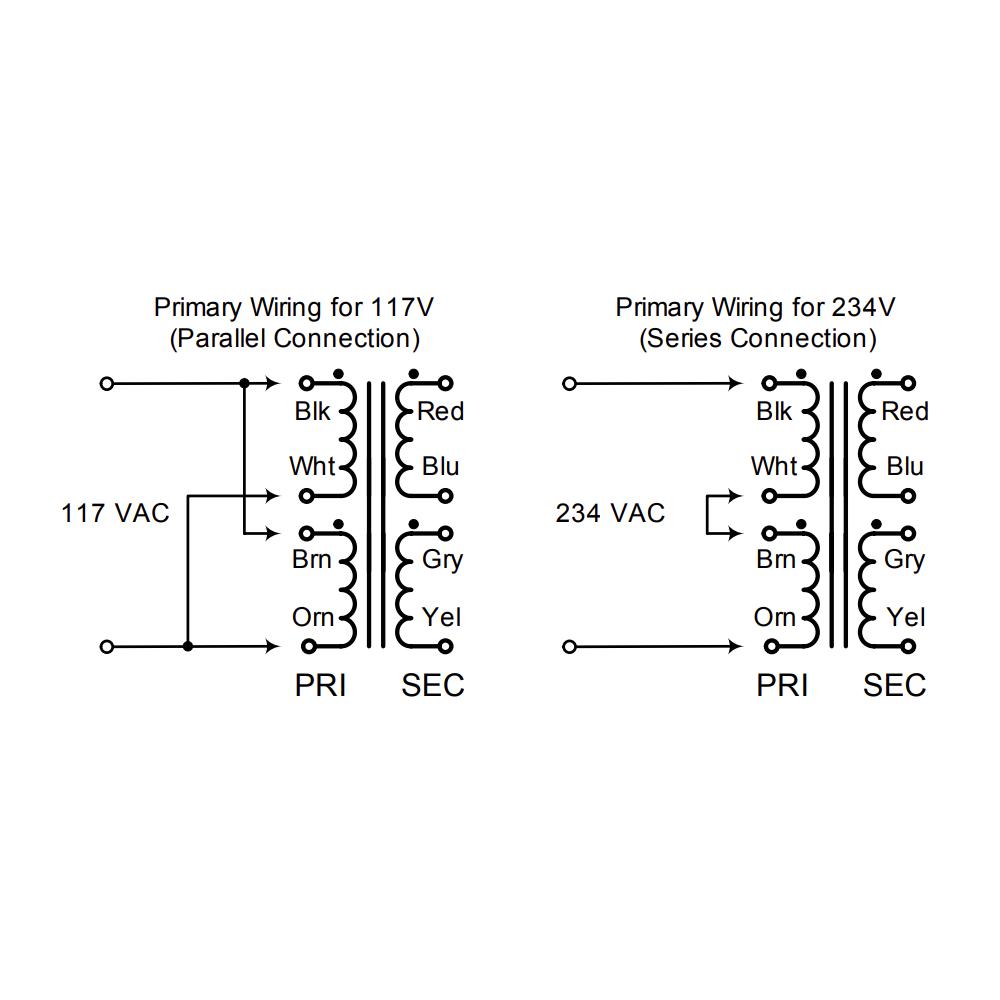

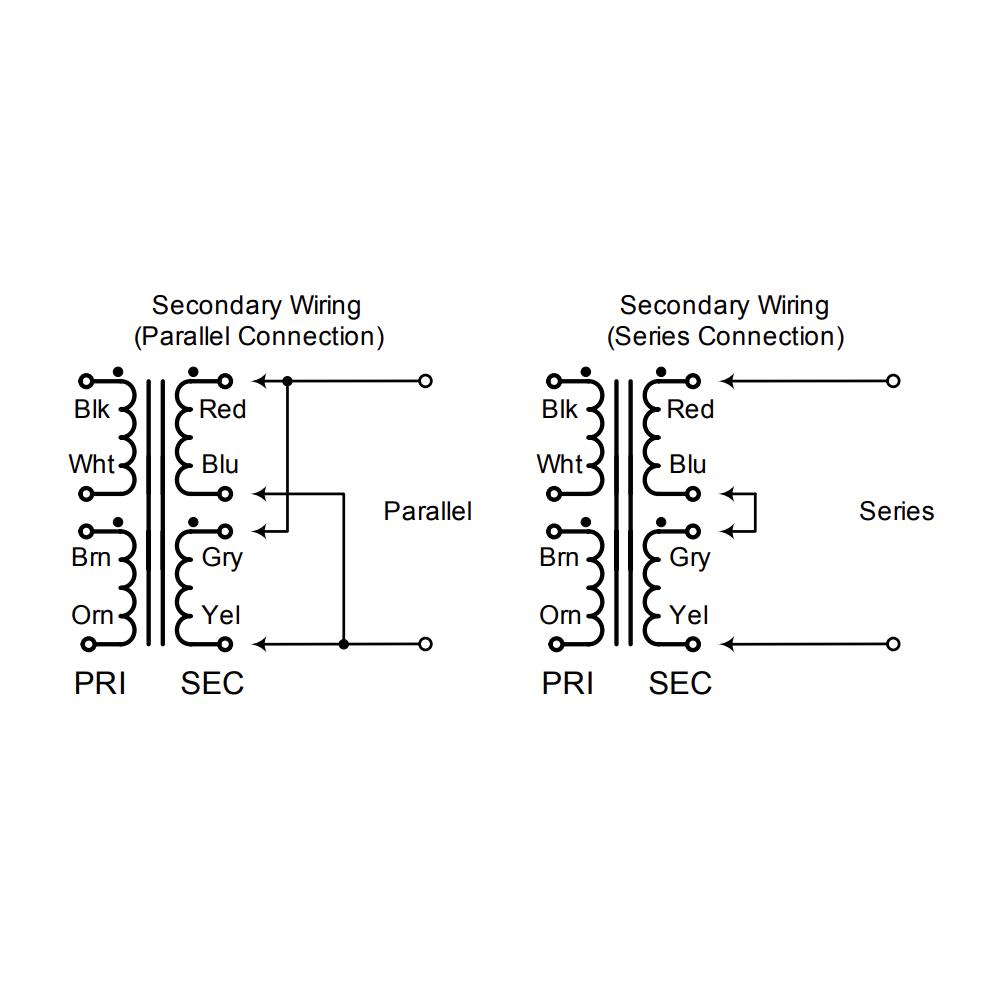

- Secondaries can be used as; a center tapped secondary, parallel connected or used individually
- Units are designed for use with all windings engaged
- Open style
- Minimum 6” long leads
- Dual bobbin design - no electrostatic shield required
- We use Class B insulation (130 degrees, C) for extra protection - UL listed as a Class A (105 degree, C) design
Details and Specifications

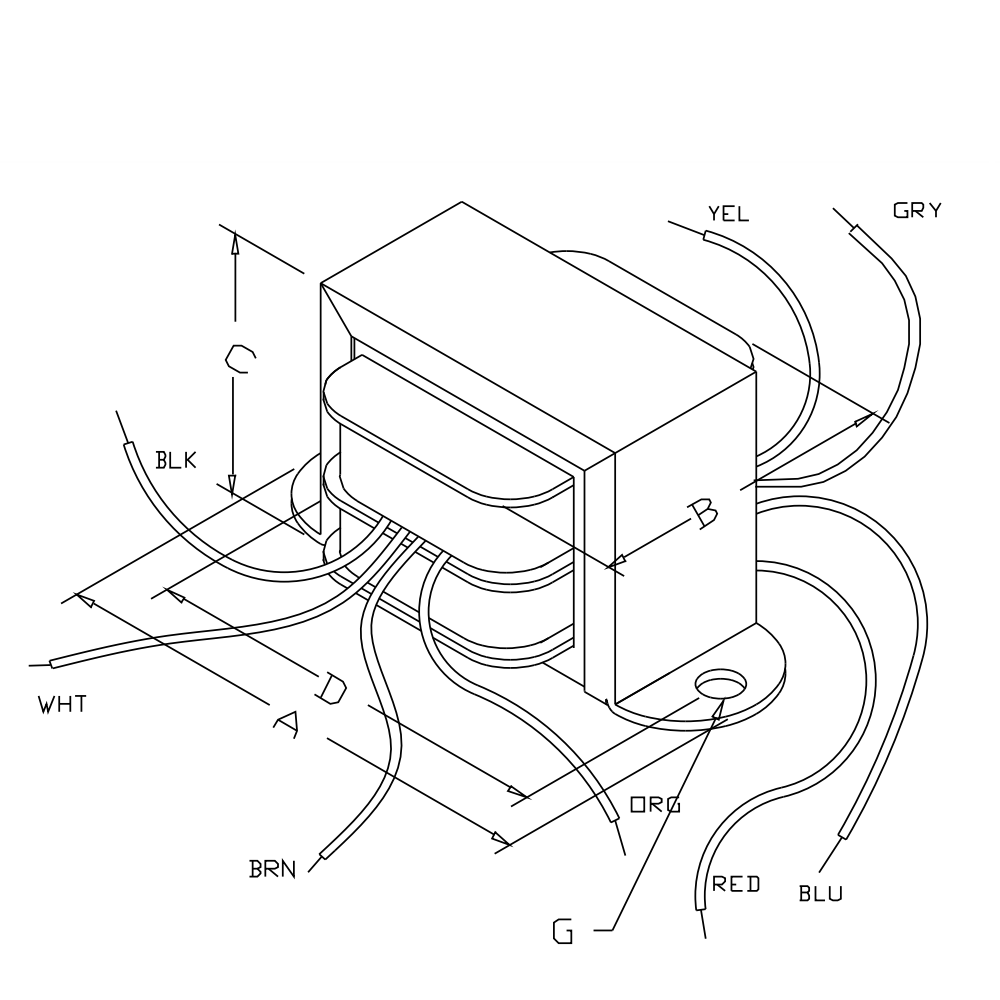

- A: 83 mm
- B: 44 mm
- C: 51 mm
- D: 71 mm
- E: 71 mm
- width 0.19
- Weight: 1 Lbs
