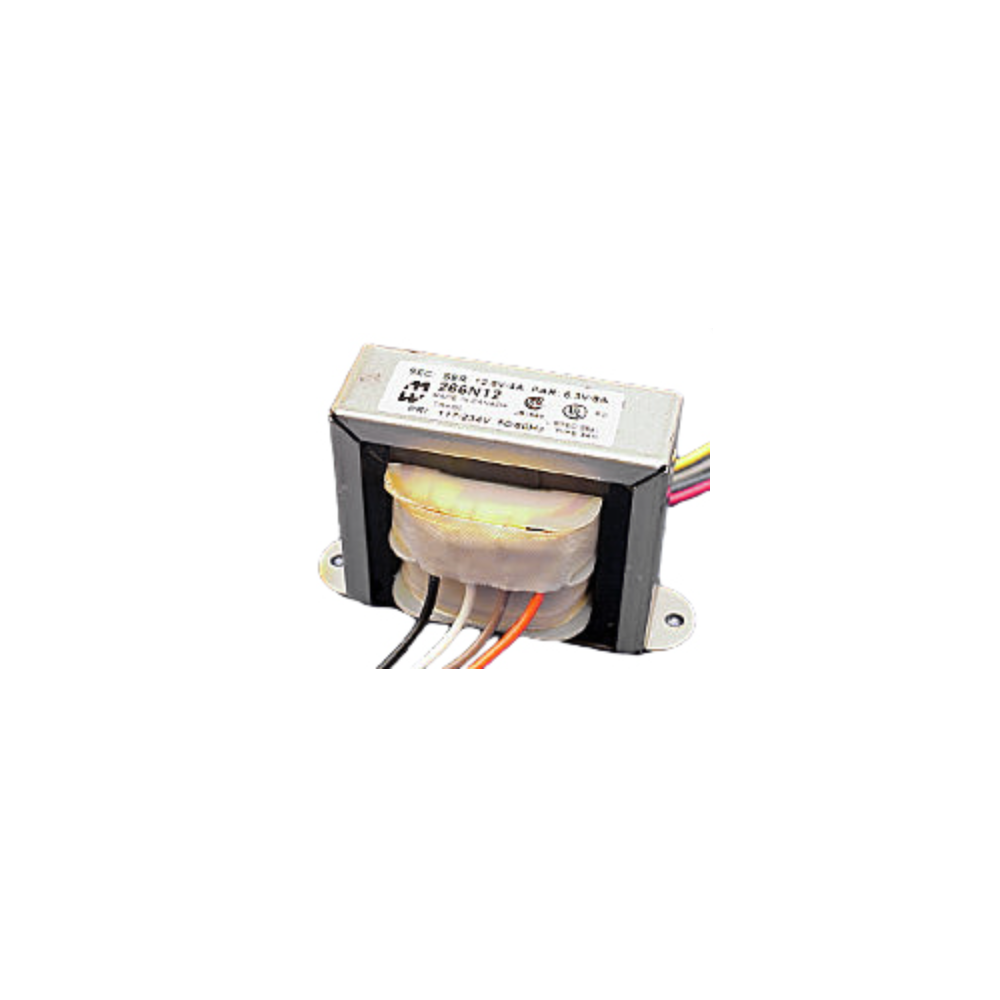

Transformer 110-220 to 12.6VCT 2.5A (31.5VA)
Web N°: 40-0504
$59.95
Transformer 110-220 to 12.6VCT 2.5A (31.5VA)
Web N°: 40-0504
$59.95
Description
- 266l12
- Power (VA) 31.5

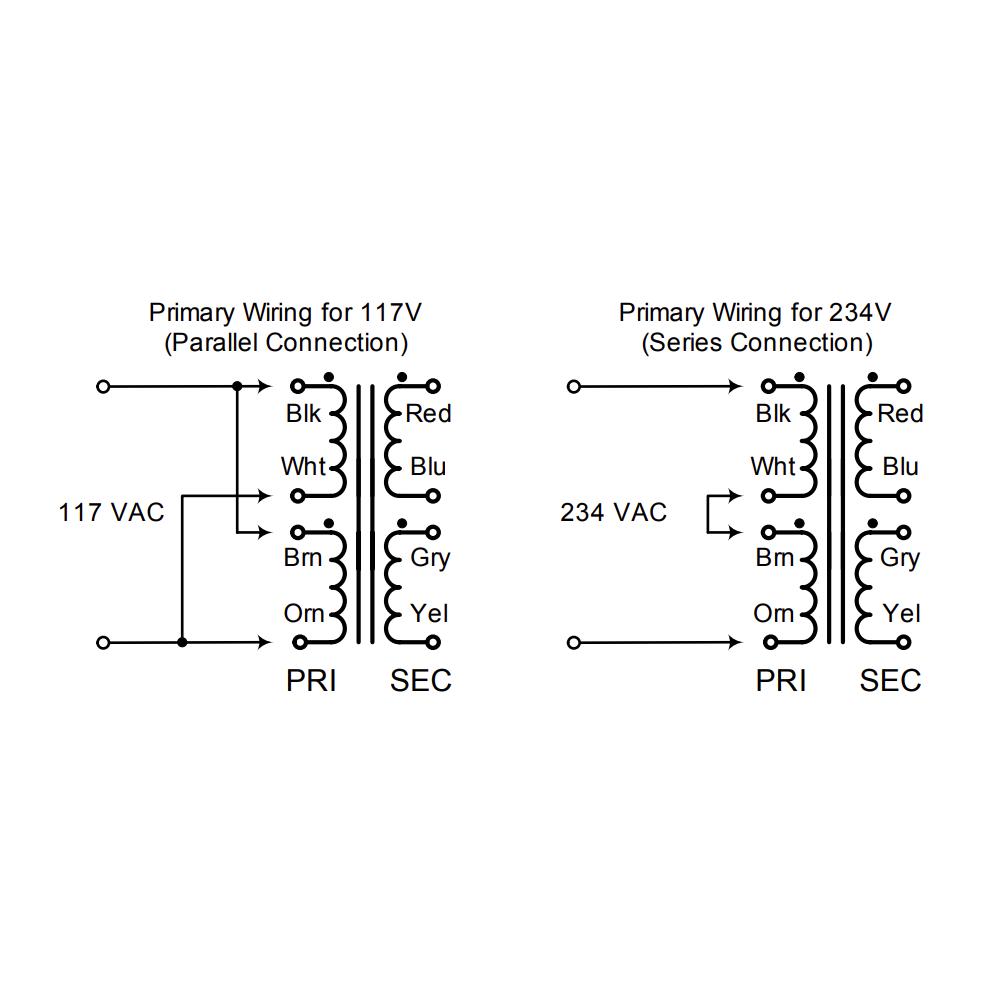

- Primary 117/234 VAC, 50/60 Hz.
- Secondary Series (C.T.) 12.6V @ 2.5A
- Secondary Parallel 2x 6.3V @ 5A
- Secondaries can be used as; a center tapped secondary, parallel connected or used individually
- Units are designed for use with all windings engaged
- Open style
- Minimum 6” long leads
- Dual bobbin design - no electrostatic shield required
- We use Class B insulation (130 degrees, C) for extra protection - UL listed as a Class A (105 degree, C) design
Details and Specifications

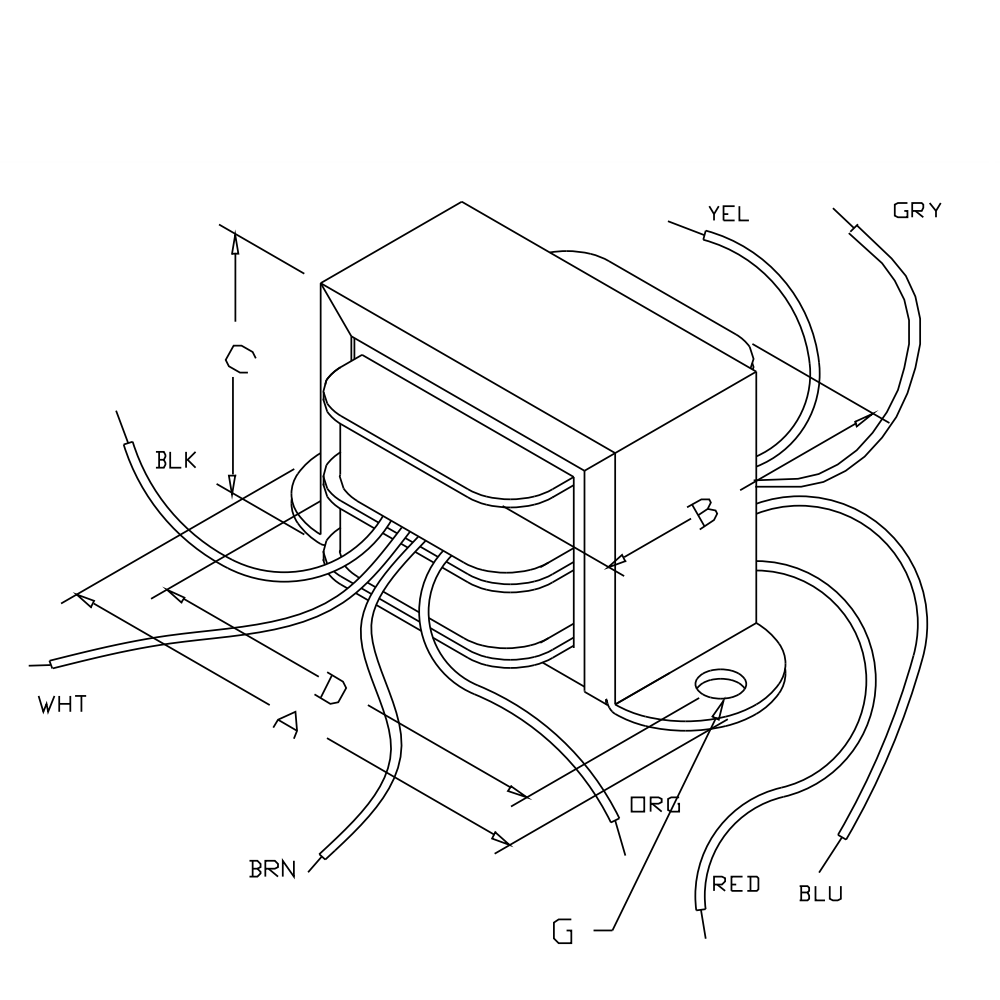

Overall Dimensions (in / mm)
- A 3.69 / 94
- B 2.2 / 56
- C 2.31 / 59
- D 3.13 / 80
- E 3.13 / 80
- Weight 1 lbs / 0.45 kg
Mounting Hole Sizes (in / mm)
- Width-wise 0.187 /5
