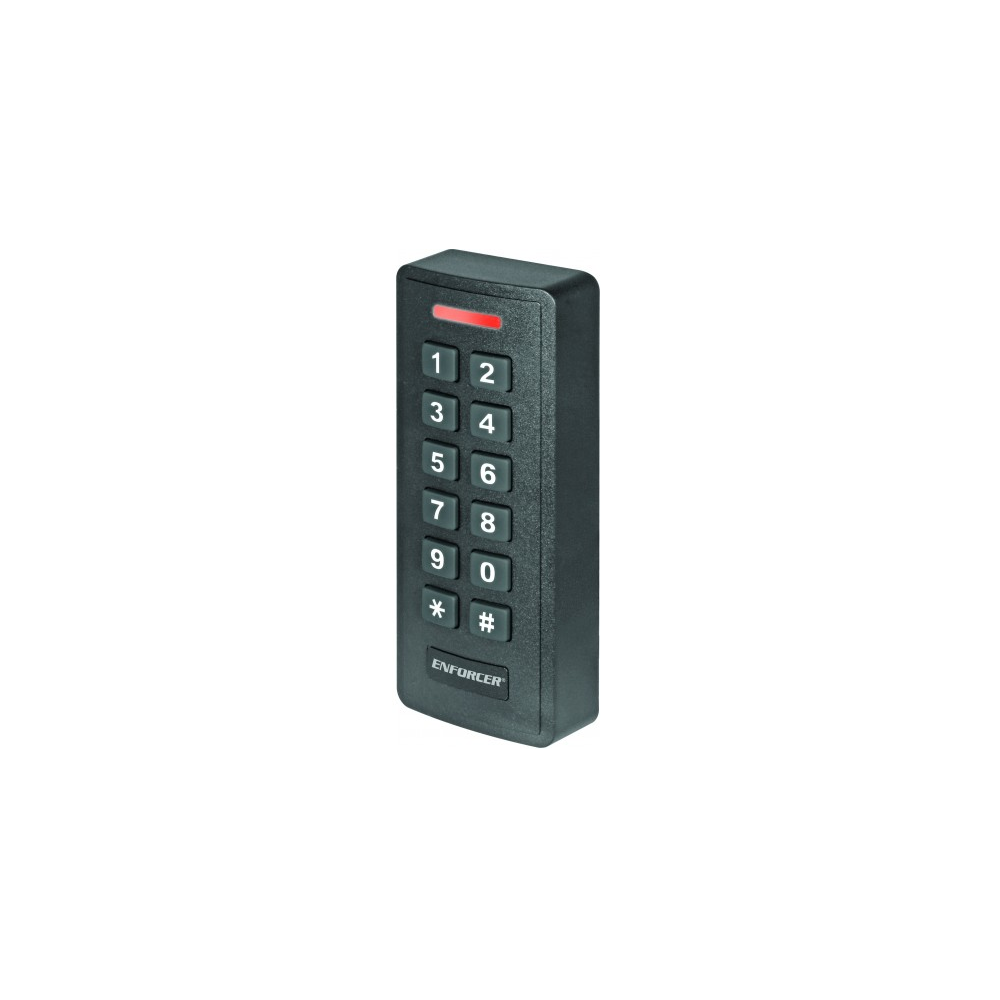

Outdoor Stand-Alone / Wiegand Keypad with Proximity Reader

Description

• 1,000 Users (up to 998 users and 2 duress users)
• User code length 4~6 digits
• 9~18 VDC Operation, low current draw – 105mA max.
• Form C relay output – 2A@12VDC
• Adjustable output time – 0.5~99s, or toggle
• Built-in tamper alarm and external alarm (duress) output
• Backlit keypad and multicolor status LED
• EM 125kHz, Proximity cards and Keyfobs sold separately
• Easy transfer of users to additional devices using Wiegand output
• All features programmed directly on the keypad: No need for an external programmer
• Egress input lets users exit the premises without a code/card
• Can serve as either Wiegand reader or controller, both output and input are selectable 26~37 bits
• 2-Door interlock function
• Extreme cold tolerance to -40° F (-40° C)
• Epoxy-filled black ABS plastic housing –Weather-resistant IP66
