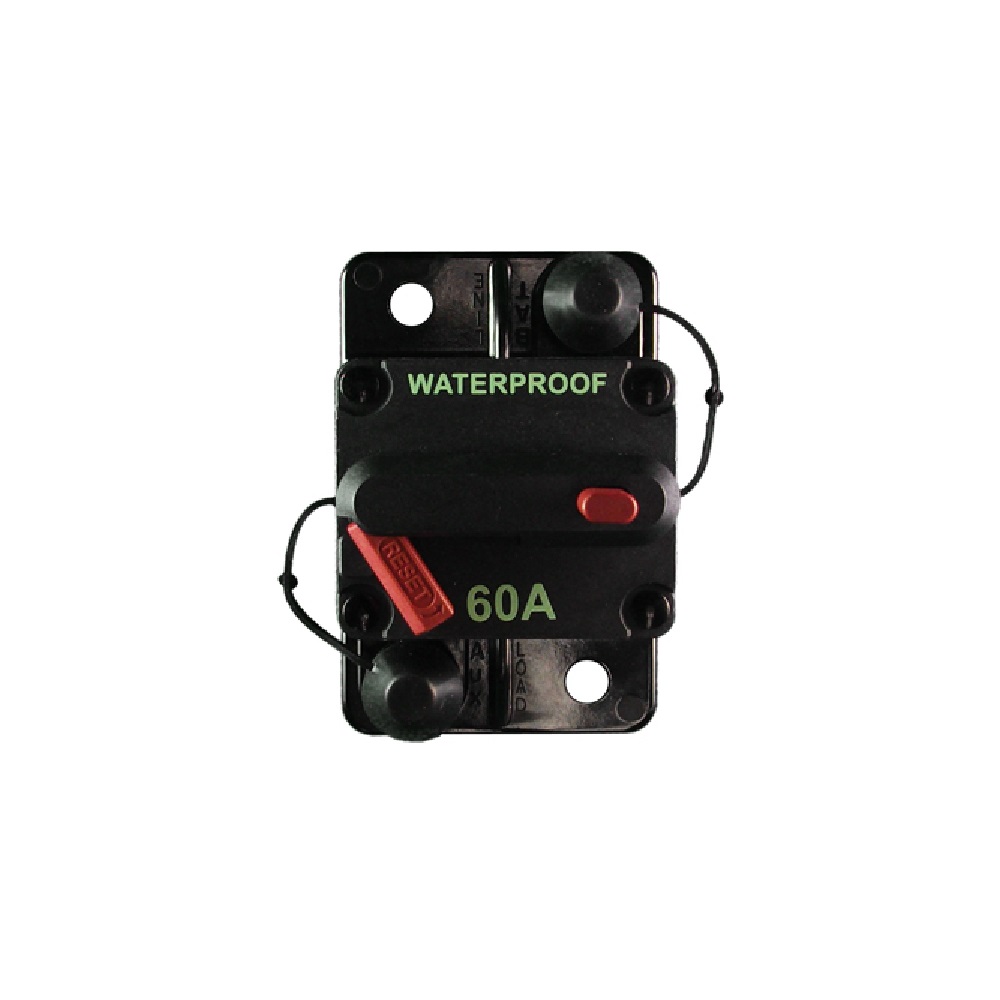

60 Amp Type III Manual Reset Circuit Breakers
Web N°: 17-1092
$59.95
60 Amp Type III Manual Reset Circuit Breakers
Web N°: 17-1092
$59.95
Description
Circuit breaker will remain tripped (in the off position) until the lever is manually reset. Panel or surface mount. Typically used in auxilliary and accessory circuits-trucks, busses, RV's and marine applications. Others might include battery chargers and DC audio systems.
Details and Specifications
- Amp: 60A
- Colour: Black
- Flammability Rating: UL94-V0 (Housing)
- Interrupt Rating: 2000A @ 48V DC
- Material: Thermoset Plastic
- SAE Standard: J1625
- Temperature Rating °C
- Operating: -32 to 82
- Storage: -34 to 149
- Temperature Rating °F
- Operating: -25 to 180
- Storage: -29 to 300
- Voltage: 48VDC
