4-port Component splitter + audio
Web N°: 10-0185
$259.95

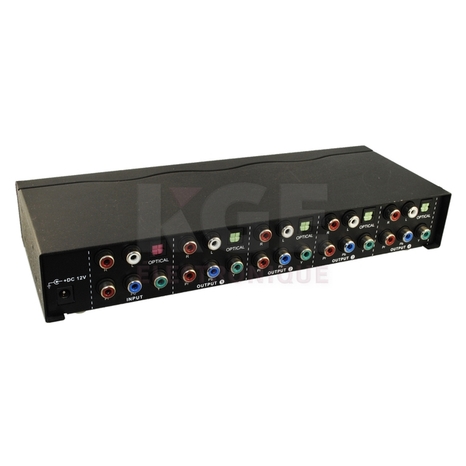

4-port Component splitter + audio
Web N°: 10-0185
$259.95
Description
Description:
The 10-0185 is a distribution amplifier that splits the same audio/video signal to four screens/speakers. Accepts either RCA analog audio (left/right) or digital optical (toslink) audio.
Features:
- Bandwidth 400MHz (-3db)
- Compliant with the component RCA Video
- Supports 480p, 576i, 576p, 720p, 1080i
- Video input impedance: 75 Ohms
- Compliant with the RCA Audio
- Audio input impedance: 10K Ohms
- Supports digital optical audio
- Audio Frequency Response 20Hz~20KHz
- Extends the signal up to 15 meter
- Can be cascaded
- 1U rack design
Package Contents:
- 1 YVS-714A Audio/Video Distribution Amplifier
- 1 user manual
- 1 power adapter DC 12V 600mA
- 1 1.2m component (Video) Cable
- 1 1.2m Audio R/L Cable
- 2 rack rails, 8 screws
Specifications:
- Video Input Connector - (1 set) YPbPr RCA Female
- Video Output Connector - (4 sets) YPbPr RCA Female
- Audio Input Connector - (1 set) Left/Right RCA Female or (1 set) Toslink Female
- Audio Output Connector - (4 set) Left/Right RCA Female or (4 set) Toslink Female
- Cable Distance - 15 m Max.
- Power Adapter (Min.) - DC 12V 600mA
