4 Pair Speaker Selector, Single Source
Web N°: 31-0180
$189.95

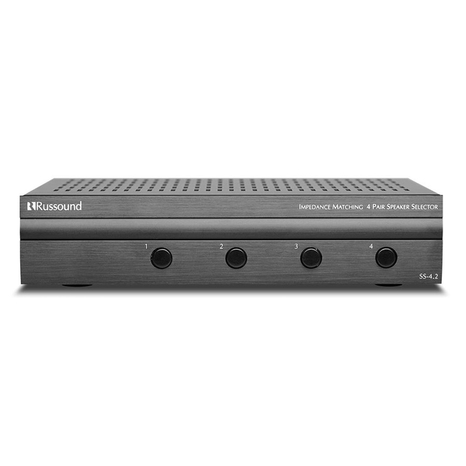

4 Pair Speaker Selector, Single Source
Out of stock

4 Pair Speaker Selector, Single Source

Web N°: 31-0180
$189.95

This product is out of stock.


Description

  • Allows you to switch up to four speaker pairs connected to a stereo amplifier. Offering high-quality audio performance, it also provides overload protection and long-term reliability.
  • Offers two operating configurations: Impedance Matching and Bypass. Impedance-matching mode provides automatic overload protection for use even with high-power amplifiers. This mode allows multiple pairs of speakers to be safely connected to an amplifier using the built-in automatic impedance-matching circuitry. Bypass mode is used for direct speaker switching with remote impedance-matching volume controls. This allows local control in each room as well as higher efficiency; however, in this mode the impedance matching and overload protection are not engaged.
  • Designed for use with 8-ohm loudspeakers, it also provides safe connection to bridged amplifiers and even works in applications where there is a floating ground. It has spring-loaded speaker terminals for quick connection and can accommodate speaker wire up to 12 gauge.

Details and Specifications

  • Dimensions: 10.0" (W) x 2.5" (H) x 12.0" (D) (25.4 x 6.4 x 30.5 cm)
  • Weight: 2.6 lbs (1.2 kg)
  • Connector(s): Spring terminals
  • Frequency Response: 20 Hz - 20 kHz +/- 0 dB
  • Max Wire Size: 12 AWG (2.4 mm)
  • Power Handling: 100 watts per channel peak, 100 watts per channel RMS
