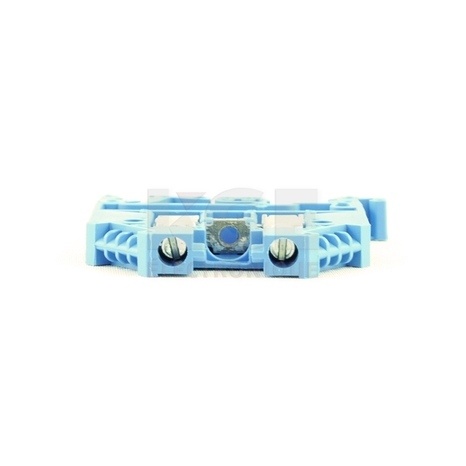

Blue WK4 Terminal
Web N°: 26-0643
$1.09
Blue WK4 Terminal
Web N°: 26-0643
$1.09
Description
Feed-through DIN rail terminal block with screw connection for mounting on TS 35 and TS 32, nominal cross section 4 mm, width 6 mm, color blue.
Details and Specifications
- Nominal cross section: 4mm.
- Colour: Blue.
- Number of levels: 1.
- Number of clamp positions per level: 2.
- Width/grid dimension: 6mm.
- Insulating housing: PA666.
- Inflammability class of insulation material acc. with UL94: V0.
- Explosion-tested.
- Mounting method: DIN rail (top hat rail)/G-rail.
- Terminal blocks for electrical installations.
- Rated current: 32A.
- Rated voltage: 800V.
- Rated impulse voltage: 8kV.
- Pollution degree: 3.
- Closing plate required.
- Length: 44.5mm.
- Type of insulation material: Thermoplastic.
- Connection type: Screw connection.
- Minimum cross section solid: 0.5mm.
- Maximum cross section solid: 6mm.
- Minimum cross section fine stranded: 0.5mm.
- Maximum cross section fine stranded: 4mm.
- Wire strip length: 9mm.
- Torque conductor mounting: 0.5Nm.
- Cross section UL: 22-10 AWG.
- Voltage UL: 600V.
- Current factory wiring: 35A.
- Current field wiring: 30A.
- Cross section CSA: 22-10 AWG.
- Voltage CSA: 600V.
- Current CSA: 40A.
