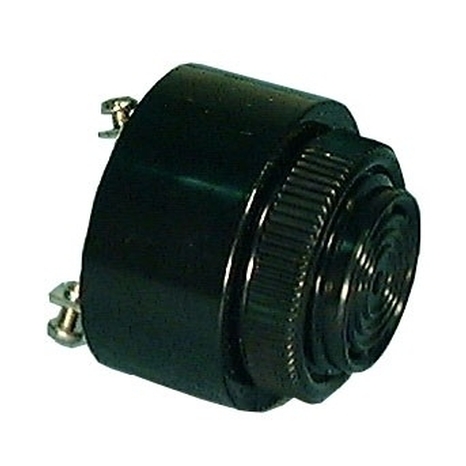

30V AC/DC to 120V AC/DC Electronic Audio Signal
Web N°: 25-0366
$19.95
30V AC/DC to 120V AC/DC Electronic Audio Signal
Web N°: 25-0366
$19.95
Description
An electronic audio signal that has applications in electronic instruments, alarms, autos, detectors, and any other application where a rich sound and low current consumption is required.
Details and Specifications
Wide operating voltage range.
Wide operating voltage range.
- 30V AC/DC (Min) - 4mA - 80dB.
- 120V AC/DC (Max.) - 18mA - 95dB.
- Output Tone: Continuous.
- Frequency: 2900Hz +/- 500Hz.
- Mounting Hole: 1.125” Diameter.
- A Direct equivalent for the SC110N MALLORY Sonalert.
