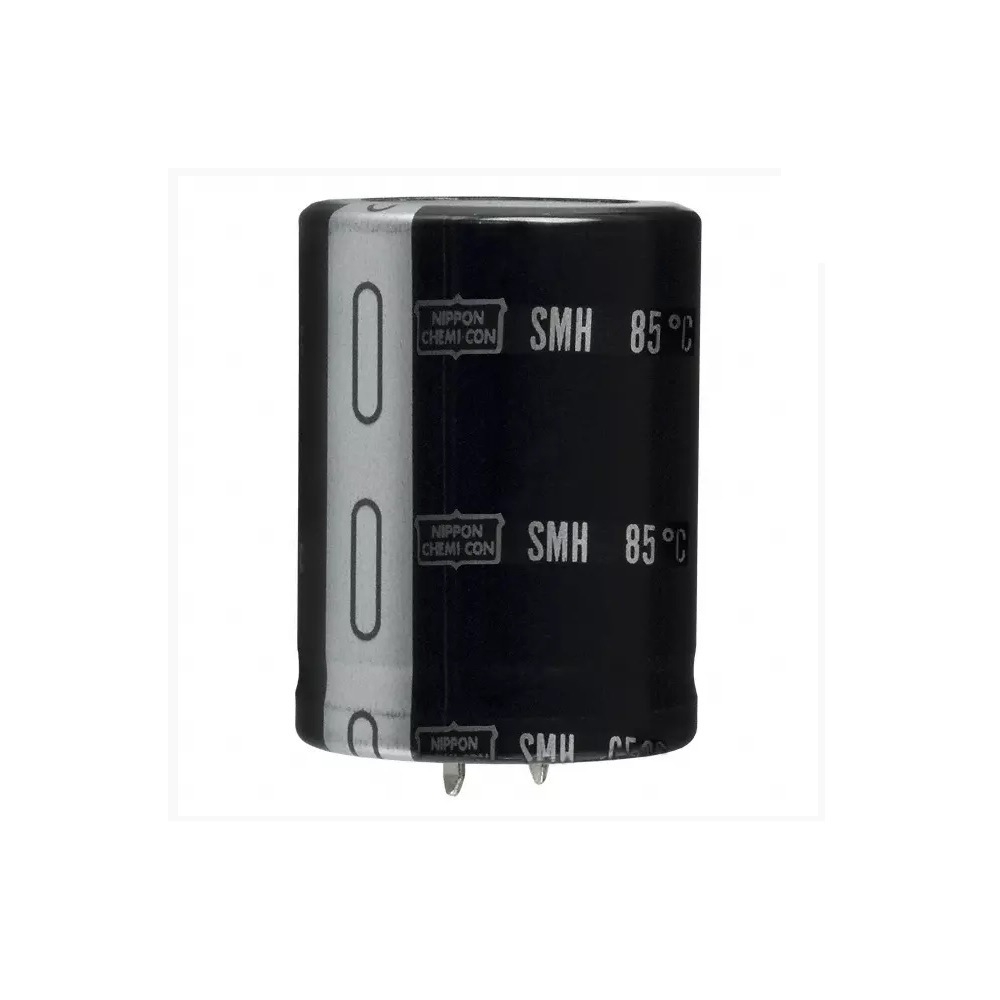

Capacitor 15000uF 20% 35V Snap
Web N°: 25-2197
$9.95
Capacitor 15000uF 20% 35V Snap
Web N°: 25-2197
$9.95
Description
Capacitance 15000µF
Tolerance ±20%
Voltage - Rated 35V
ESR (Equivalent Series Resistance) 28 mOhm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 85°C
Operating Temperature -40°C ~ 85°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 4.52A @ 120Hz
Ripple Current @ High Frequency 4.8816A @ 100kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.181" Dia (30.00mm)
Height - Seated (Max) 1.575" (40.00mm)
