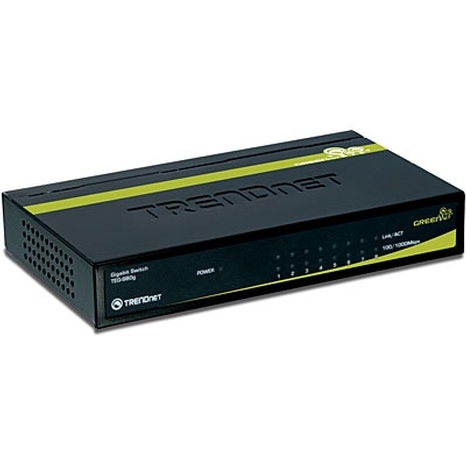

8-Port Gigabit Switch

TRENDNET

Web N°: 33-1038

$69.95

This product is out of stock.

The compact 8-Port Gigabit GREENnet Switch provides high bandwidth performance, ease of use and reliability, all while reducing power consumption by up to 70%
GREENnet technology automatically adjusts power voltage as needed, resulting in substantial energy savings.
Boost your office efficiency and eliminate network congestion with Gigabit speeds and total switching capacity of 16Gbps with Full-Duplex Mode.
Plug and Play, this sturdy metal switch for reliable high-speed network connectivity.
8 x 10/100/1000Mbps Auto-Negotiation, Auto-MDIX Gigabit Ethernet ports
GREENnet technology reduces power consumption when: Ethernet port is not in use, Connected device is turned off, Connected device is in power-saving mode, Based on Ethernet cable length
Store-and-Forward switching architecture with non-blocking wire-speed performance
IEEE 802.3x Flow Control for full-duplex mode
Back pressure Flow Control for half-duplex mode
Integrated address look-up engine with 4K absolute MAC address table and 128KBytes RAM data buffering
Operates and maximizes packet filtering and forwarding rate
Jumbo Frame support up to 9612Bytes
Sturdy metal housing
Diagnostic LEDs and Plug & Play

Standards: IEEE 802.3 10Base-T; IEEE 802.3u 100Base-TX; IEEE 802.3ab 1000Base-T; IEEE 802.3x Flow Control
Network Media: Ethernet: Cat. 3,4,5, up to 100m; Fast Ethernet: Cat. 5, up to 100m; Gigabit Ethernet: Cat. 5, 5e, 6, up to 100m
Data Rate: Ethernet: 10Mbps/20Mbps (Half/Full-Duplex); Fast Ethernet: 100Mbps/200Mbps (Half/Full-Duplex); Gigabit Ethernet: 2000Mbps (Full-Duplex)
Protocol / Topology: CSMA/CD, Star
Power Consumption: 5W (max)
Switch Fabric: 16Gbps Forwarding Capacity
Interface: 8 10/100/1000Mbps Auto-MDIX RJ-45 Ports
Data RAM Buffer: 128KBytes
Filtering Table: 4K entries
Diagnostic LED: Power, Link/ACT, 100Mbps, 1000Mbps
Power Adapter: 7.5V DC, 1A external power adapter
Dimension: 171 x 98 x 28mm (6.7 x 3.86 x 1.1 in)
Weight: 450g (15.9 oz)
Temperature: Operating: 0° ~ 40° C (32° ~ 104° F) Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity: 5%~90% (non-condensing)
Certifications: FCC, CE
