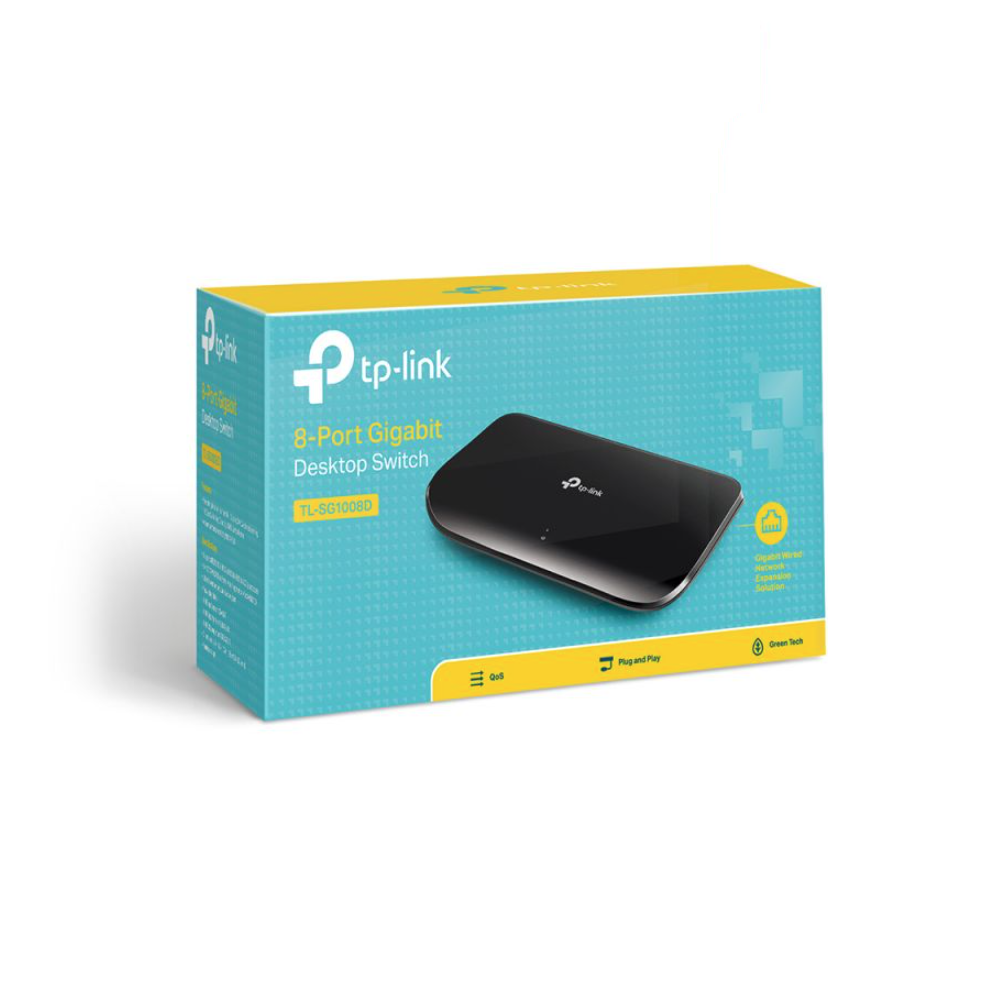

8-Port Gigabit Desktop Switch

Description

• Innovative energy-efficient technology saves power up to 80%
• Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
• Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
• 10Gbps Switching Capacity
• 15K Jumbo frame improves performance of large data transfers
• Auto-MDI/MDIX eliminates the need for crossover cables
• Supports MAC address auto-learning and auto-aging
• Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware
• Fanless design ensures quiet operation
• Desktop or wall-mounting design
• Plug and Play design simplifies installation

Details and Specifications

HARDWARE FEATURES

• Interface: 8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
• External Power Supply: 100-240VAC, 50/60Hz
• Fan Quantity: Fanless
• Dimensions ( W x D x H ): 6.5*4.3*1.1 in. (165mm*108mm*28mm)

SOFTWARE FEATURES

• Transfer Method: Store and Forward
• MAC Address Table: 8K
• Advanced Functions: Green Technology, saving power up to 80% 802.3X Flow Control, Back Pressure Auto-Uplink Every Port

OTHERS

• Certification: FCC, CE, RoHs
• Package Contents: 8-Port Gigabit Desktop Switch Power Adapter User Guide
• System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
• Environment: Operating Temperature: 0°C~40°C (32°F~104°F)
• Storage Temperature: -40°C~70°C(-40°F~158°F)
• Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
