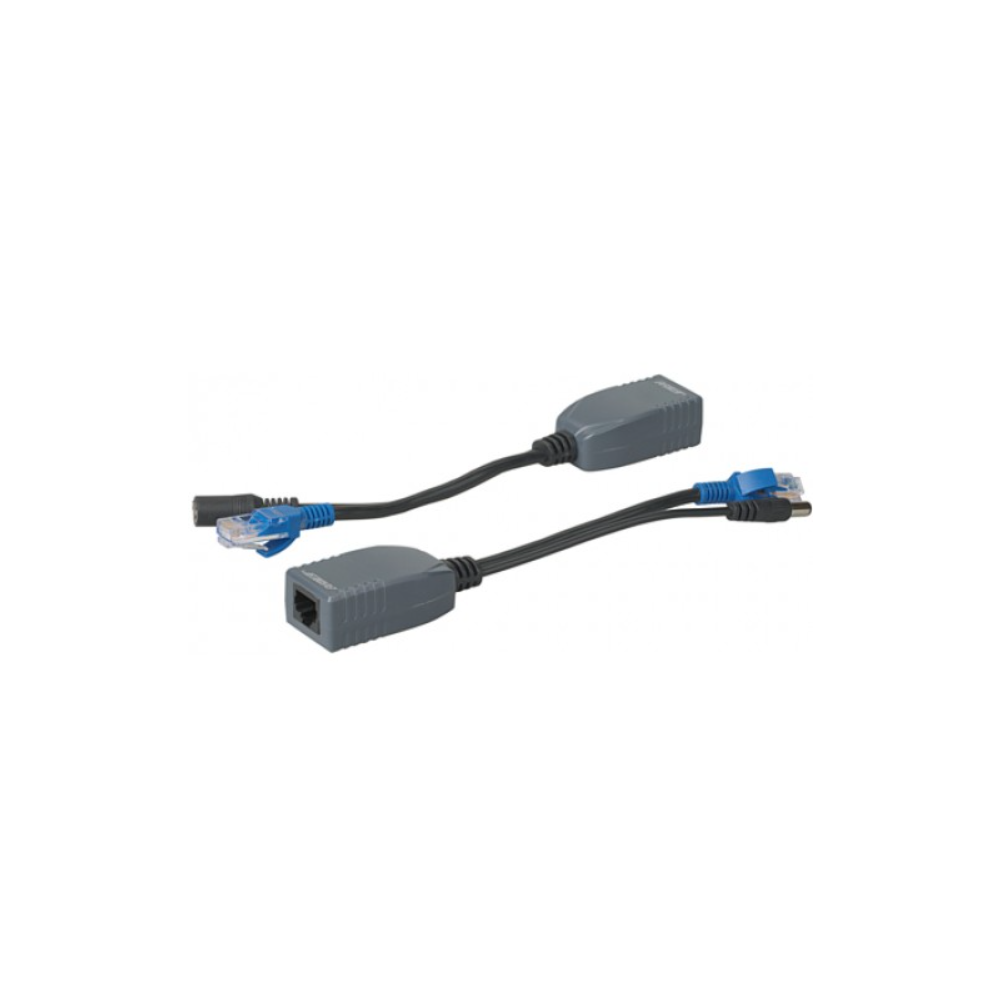

Basic PoE Splitter and Injector

Description

The ENFORCER Passive PoE Splitter and Injector is designed to support up to 100Mb/s networks and is compatible with all DC powered and non-POE devices up to 50VDC.

• Includes splitter and injector
• Works with all DC powered non-POE devices up to 50VDC
• Supports up to 100Mb/s networks
• Plug & play installation
• Use existing Cat5e/6 wiring to extend power to non-PoE devices
• For distances up to 328ft (100m)

Details and Specifications

• Transmission Medium: Cat5e/6 UTP
• Input Voltage: =50VDC
• Transmission Range: 328ft (100m) max
• Transmission Current: 1A max
• Storage Temperature: -22°~158°F (-30°~70°C)
• Operating Temperature: 14°~158°F (-10°~70°C)
• Operating Humidity: 0 to 95%
• Dimensions: 2-1/16”x1-1/8”x13/16” (52x28x21mm) with 5.9” (15cm) cable
