IEC C14 TO 2X IEC C13 POWER DIVIDER CABLE 14AWG 6'
Web N°: 28-0321
$16.95
IEC C14 TO 2X IEC C13 POWER DIVIDER CABLE 14AWG 6'
Web N°: 28-0321
$16.95
Description

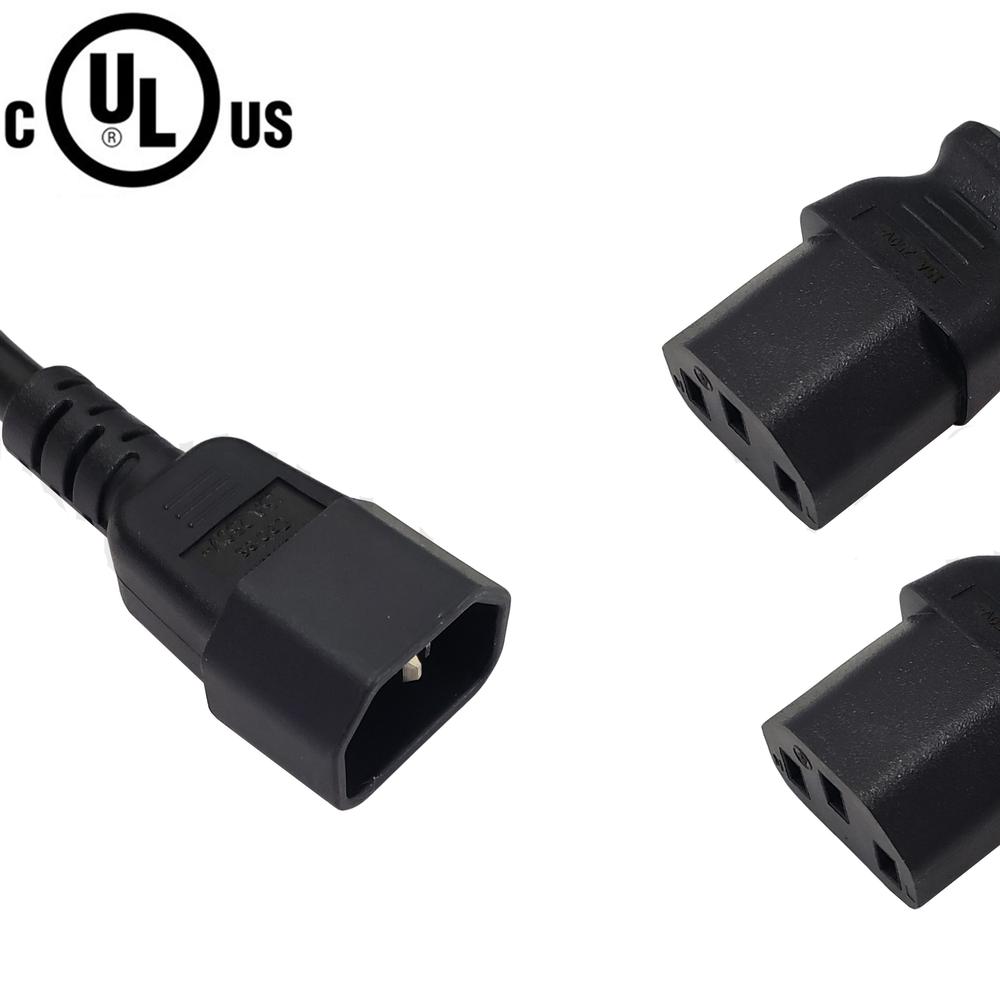

This power cord consists of a C14 male on one end and two C13 females on the other end. It is typically used on devices with multiple power supplies sharing one receptacle. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and high quality molds. The connectors premium quality to ensure a snug fit into PDU receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
Details and Specifications
Specifications
|
Physical Characteristics
| |
|---|---|
| Color | Black |
| Number of Conductors | 3 Conductor |
| Wire Gauge | 18AWG / 16AWG / 14AWG |
| Jacket | Heavy Duty SJT |
| Jacket Material | 100% Virgin PVC - Polyvinyl Chloride |
| Jacket Fire Rating | VW-1 |
| Strain Relief | Molded 100% Virgin PVC |
| Temperature Rating | -20 deg C to 105 deg C |
|
Connector(s)
| |
| Connector A | IEC 60320 C14 |
| Connector B | IEC 60320 C13 |
| Connector B | IEC 60320 C13 |
|
Performance
| |
| Power Rating | 10 Amp / 250 Volt (18AWG) 14 Amp / 250 Volt (16AWG) 15 Amp / 250 Volt (14AWG) |
|
Approvals
| |
| C14 | c(UL)us |
| C13 | c(UL)us |
| C13 | c(UL)us |
| Cable | c(UL)us |
| ISO | ISO 9001:2000, ISO 14000 |
|
Product Support
| |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Country of Origin | Vietnam |
