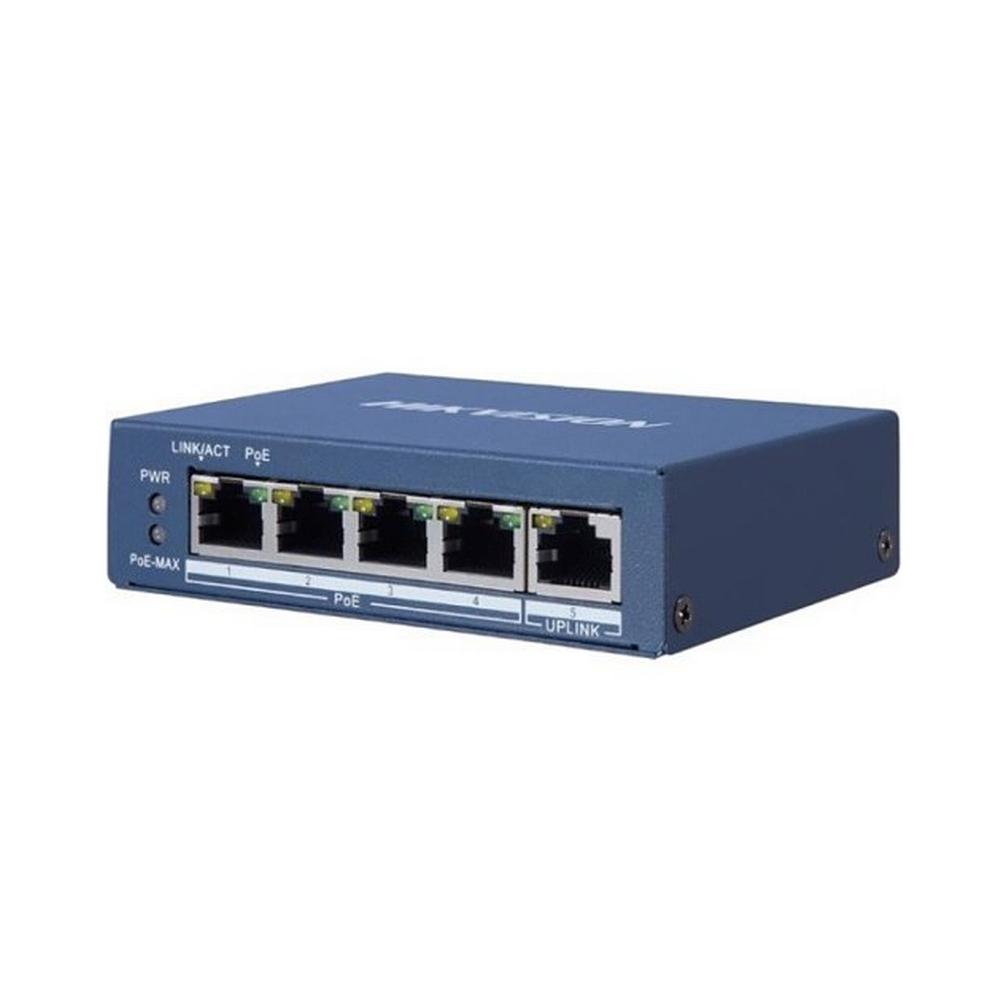

Hikvision DS-3E0505P-E 4-Port Unmanaged Gigabit PoE Switch, 10Gbps
HIKVISION
Web N°: 33-2582
$84.95
DS-3E0505P-E

Hikvision DS-3E0505P-E 4-Port Unmanaged Gigabit PoE Switch, 10Gbps

HIKVISION
Web N°: 33-2582
$84.95

Quantity available : 1

Share
Add to my wish list

* Prices are in Canadian dollars. Taxes and shipping not included.

Our Store

Description

Product Overview



DS-3E0505P-E switches are layer 2 gigabit unmanaged PoE switches, providing 4 gigabit PoE ports, and one 10/100/1000 Mbps RJ45 port. The switches provide advanced PoE technology and connect other devices with high performance. Meanwhile, all gigabit ports guarantee stable transmission of data.

Main Features
  • 4 × gigabit PoE ports, and 1 × gigabit RJ45 port
  • IEEE 802.3at/af standard
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard
  • PoE port with 6 KV surge protection
  • PoE output power management.
  • Gigabit network access
  • Wire-speed forwarding and non-blocking design.
  • Store-and-forward switching
  • Solid high-strength metal shell
  • Fan-free design with high reliability
General Information
Name: Hikvision DS-3E0505P-E 4-Port Unmanaged Gigabit PoE Switch, 10Gbps, Hikvision, Hikvision
Category: Hikvision, Data Comm & Networking, Hubs, Routers & Switches, Network Switches
UPC Code: 842571126525
Country of Origin: China. Country of origin is subject to change.

Details and Specifications

Specifications

General Information

Brand Name
Hikvision
Manufacturer
Hikvision
Manufacturer Part Number
DS-3E0505P-E
Product Model
DS-3E0505P-E
Product Name
4-Port Gigabit Unmanaged PoE Switch
Product Series
DS-3E05xx-E
Product Type
Ethernet Switch
Weight (Approximate) (g)
260

Technical Information

Media Type Supported
Twisted Pair

Interfaces/Ports

Port/Expansion Slot Details
1 x Gigabit Ethernet Uplink, 4 x Gigabit Ethernet PoE
Total Number of Network Ports
4
Uplink Port
Yes

Management & Protocols

Manageable
No

Media & Performance

Network Technology
10/100/1000Base-T

Network & Communication

Ethernet Technology
Gigabit Ethernet
Layer Supported
2

Physical Characteristics

Depth
3.27" (83.10 mm)
Depth (mm)
83.1
Height
1.09" (27.60 mm)
Height (mm)
27.6
Weight (Approximate)
260 g

Power Description

Power Source
AC Adapter

Product Information

Length
4.13" (105 mm)
Length (mm)
105
Download the document (PDF)
