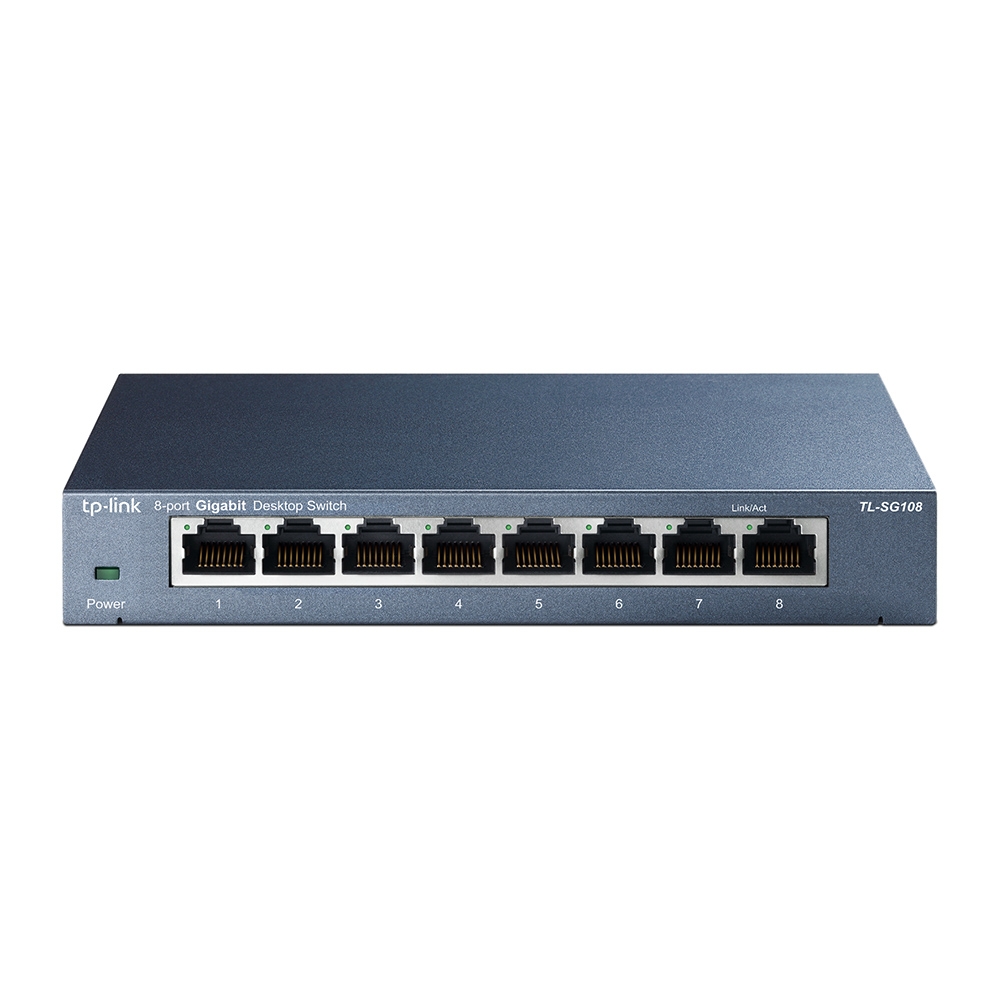

TP LINK 8 PORT GIGABIT SWITCH TL-SG108
TP-LINK
Web N°: 33-2186-1
$34.95
TP LINK 8 PORT GIGABIT SWITCH TL-SG108
TP-LINK
Web N°: 33-2186-1
$34.95
Description
- 8x 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Green Ethernet technology saves the power up to 82%
- IEEE 802.3x flow control provides reliable data transfer
- Steel housing, desktop or wall-mounting design
- Support 802.1p/DSCP QoS and IGMP Snooping function
- Plug and play, no configuration needed
Details and Specifications
|
Standards and Protocols |
IEEE 802.3i / 802.3u / 802.3ab/ 802.3x /802.1p |
|---|---|
|
Interface |
8 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX |
|
Fan Quantity |
Fanless |
|
External Power Supply |
External Power Adapter (Output: 9VDC / 0.6A) |
|
Buffer Size |
1.5Mb |
|
LED Indicator |
System Power Link/Act indicators per port built into each RJ-45 port |
|
Dimensions ( W x D x H ) |
6.2 x 4.0 x 1.0 in. (158 x 101 x 25 mm) |
|
Max Power Consumption |
3.3W |
|
Max Heat Dissipation |
11.3BTU/h |
|
Packet Forwarding Rate |
11.9Mpps |
|---|---|
|
MAC Address Table |
4K |
|
Packet Buffer Memory |
1.5Mb |
|
Jumbo Frame |
16KB |
|
Advanced Features |
Green Technology, saving power up to 82% 802.3X Flow Control 802.1p/DSCP QoS IGMP Snooping |
|---|---|
|
Transfer Method |
Store and Forward |
|
Certification |
CE, FCC ,RoHS |
|---|---|
|
Package Contents |
8-Port 10/100/1000Mbps Desktop Switch Power Adapter Installation Guide |
|
Environment |
Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90%, non-condensing Storage Humidity: 5%~90% non-condensing |
