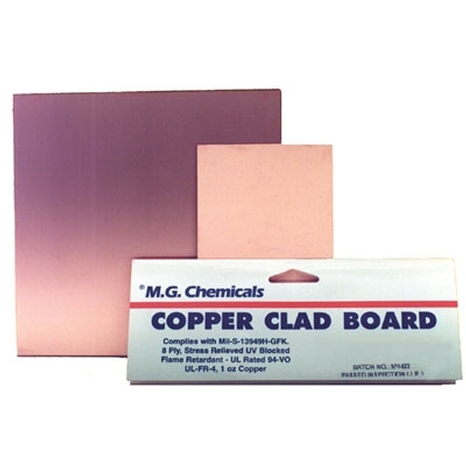

555 FR4 1/16" Double Sided Copper Clad Board - 12" x 12"
MG CHEMICALS
Web N°: 36-0166
$32.95
555 FR4 1/16

555 FR4 1/16" Double Sided Copper Clad Board - 12" x 12"

MG CHEMICALS
Web N°: 36-0166
$32.95

Quantity available : 2

Share
Add to my wish list

* Prices are in Canadian dollars. Taxes and shipping not included.

Our Store

Details and Specifications

  • 1/16" (1.6 mm) FR4 laminate with 1 ounce copper per square foot.
  • This flame retardant laminate is translucent in color and made of continuous woven glass cloth impregnated with epoxy resin. The copper on 1 ounce boards is 1.34 mil thick (0.0341 mm, 34.1 microns). The boards are made of FR4 which is a flame retardant version of G-10 material.
  • Developed specifically for the circuit processing industries' requirements. Complies with UL #E214381.
  • Easy Cutting.
  • 304 x 304 mm (approx. 12" x 12").
