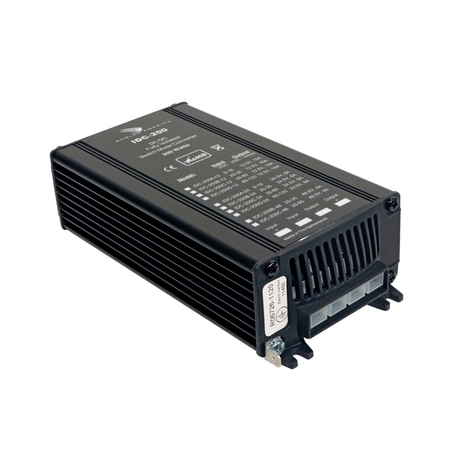

Isolated step-down converter 30-60VDC to 12VDC 16A
Web N°: 40-0231
$239.95
Isolated step-down converter 30-60VDC to 12VDC 16A
Web N°: 40-0231
$239.95
Description
The IDC-200 series is a complete line of high performance 200 watt isolated DC-DC converters suitable for applications requiring galvanic isolation between input and output.
The IDC-200C-12 isolated DC-DC converter provides a stable DC output voltage of 12.5 volts for an input voltage of 30-60 volts DC and a rated output current of 16 amps (at 60 volts input).
Features of this isolated DC-DC converter include
- a compact enclosure
- limited current protection
- short circuit and over temperature protection
- overvoltage and reverse polarity protection.
The device comes with ¼" blade shaped quick connectors. The IDC-200C-12 isolated DC-DC converter is EMI / EMC compatible and complies with European standards EN 50081-1 (EMI) and EN 50082-1 (for EMC).
Design Features:
- Fully isolated
- Short circuit protection
- Current limited
- 2 year warranty
- CE approved
Features:
- Input: 30 ~ 60 VDC
- Output: 12 VDC
- Amps: 16 amps
- Weight: 1.5 (kg)
- Weight: 0.68 (kg)
- Dimensions: 6.9 x 3.5 x 1.9 (en)
- Dimensions: 17.5 x 8.9 x 4.8 (cm)
Safety:
CE Warranty: 2 years (Canada / USA) Applications Earth moving machinery Heavy trucks Buses Marine vehicles CB Radios 12 volt lighting systems AM / FM sound systems
