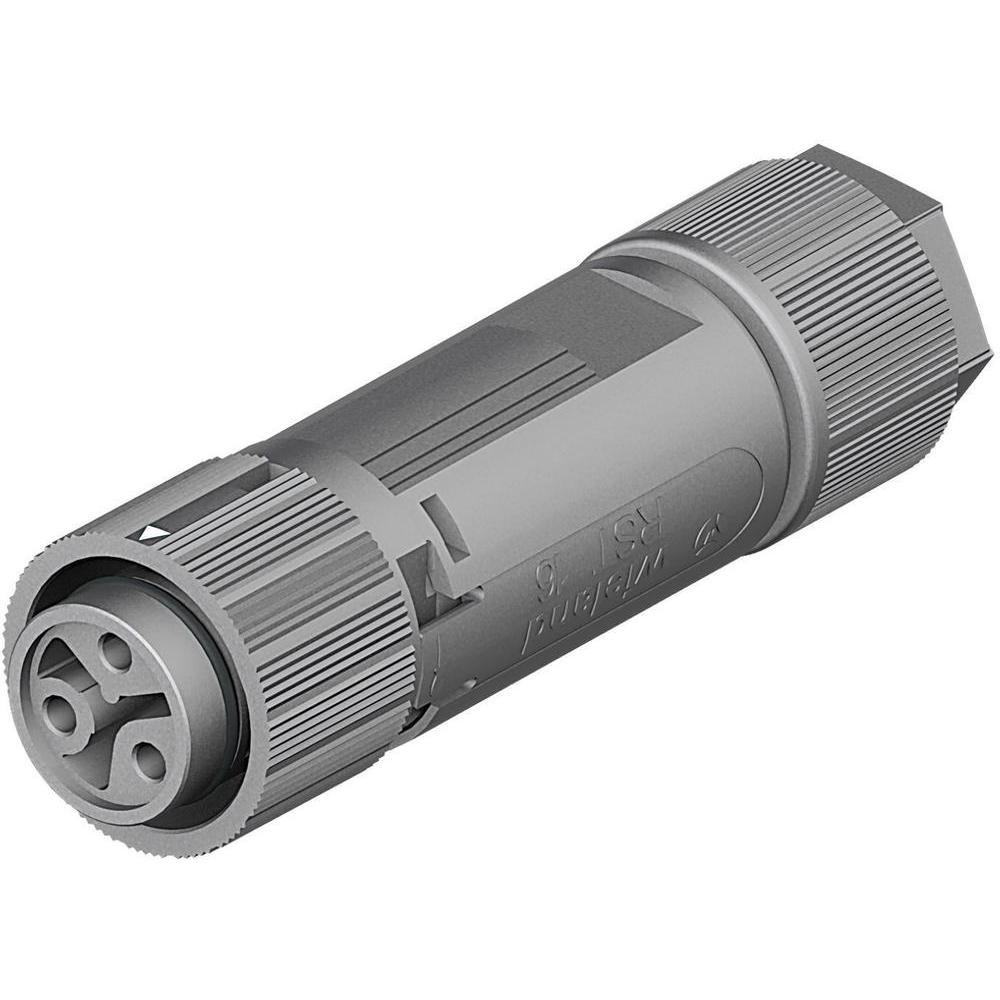

Connector RST16I3 S B1 ZT4 SW
Web N°: 26-1726
$13.95
Connector RST16I3 S B1 ZT4 SW
Web N°: 26-1726
$13.95
Description
Rated current : 16 A
Rated voltage : 250 V
Rated voltage 2 : 400 V
Rated impulse voltage : 4 kV
Strain relief : Yes
Pollution degree : 3
Mechanical coding : Code 0
Lockable : Yes
Color of coding/ contact carrier : Black
Marking of poles : L, N, PE
Color of housing inclusive strain relief : Black
Connection Data
Cable diameter : 9.5 mm
Cable diameter 2 : 5 mm
Cable diameter 3 : 9.5 mm
Cross section solid : 2.5 mm²
Cross section solid 2 : 0.25 mm²
Connection cross section stranded (max.) : 1.5 mm²
Cross section stranded 2 : 0.25 mm²
Terminations per pole : 1
Connection cross section stranded min. : 0.25 mm²
Connection cross section stranded max. : 1.5 mm²
Model
Model : female
Connection type : Screw connection
Degree of protection (IP) : IP66/68 (3m;2h) /IP69
Material
Housing material : Polyamide
Halogen free : Yes
Contact material : CuZn
Surface finish : Silver-plated
Dimensions
Length : 71 mm
Width : 19.9 mm
Height : 19.9 mm
Classification
ECLASS 8.1 : 27440605: Plug-in connector for plug-in building installation
ETIM 6.0 : EC002560
ETIM 5.0 : EC002560: Plug-in connector for plug-in building installation
ETIM 4.0 : EC002560: Plug-in connector for plug-in building installation
