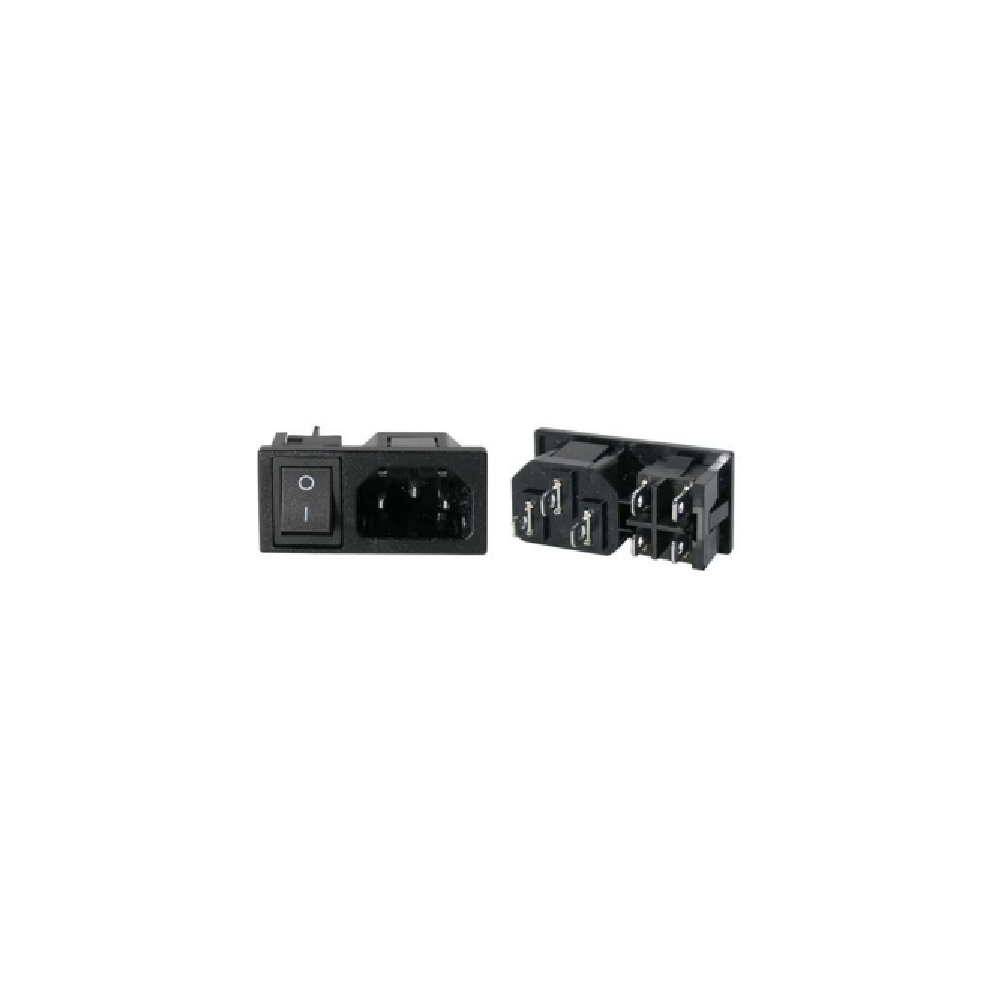

AC Chassis Jack with Switch CSA/UL
Web N°: 28-0283
$2.95
AC Chassis Jack with Switch CSA/UL
Web N°: 28-0283
$2.95
Description
- Current Rating: 250V AC 10A
- Contact Resistance: 30mOhm
- Insulator Resistance: 100MOhms min. at DC 500V
- Operating Temperature: - 45ºC~+ 105ºC
- Electrical Life: 5000 cycles Min.
- Dielectric Withstand Strength test: 2000VAC / 1 minute between each terminals
- Insertion and Removal force: 5 ~ 40N
