3 Pole Male Connector with Strain Relief for Large Wire
Web N°: 26-0674
$14.95
3 Pole Male Connector with Strain Relief for Large Wire
Web N°: 26-0674
$14.95
Description

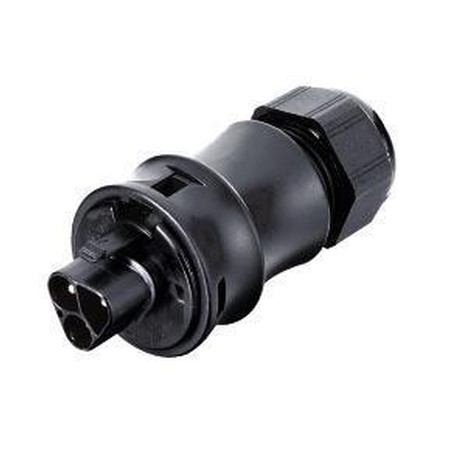

Connector 3 pole, male, screw connection, 250V/20A, for cable diameters 10-14 mm, color of coding: black, color of housing: black
Rated current: 20 A
Rated voltage: 250 V
Rated impulse voltage: 4 kV
Pull relief
Pollution degree: 3
Mechanical coding
Interlockable
Color of coding/contact carrier: Black
Connection cross section solid: 4 square mm
Connection cross section stranded: 4 square mm
Terminations per pole: 1
Number of poles: 3
Connection type: Screw connection
Degree of protection (IP): IP66/IP68
Housing material: Polyamide
Halogen free
Contact material: CuZn
Insulation components continous temperature: 100 °C
Surface finish: Silver-plated
Length: 80.4 mm
Width: 34.6 mm
Height: 34.6 mm
