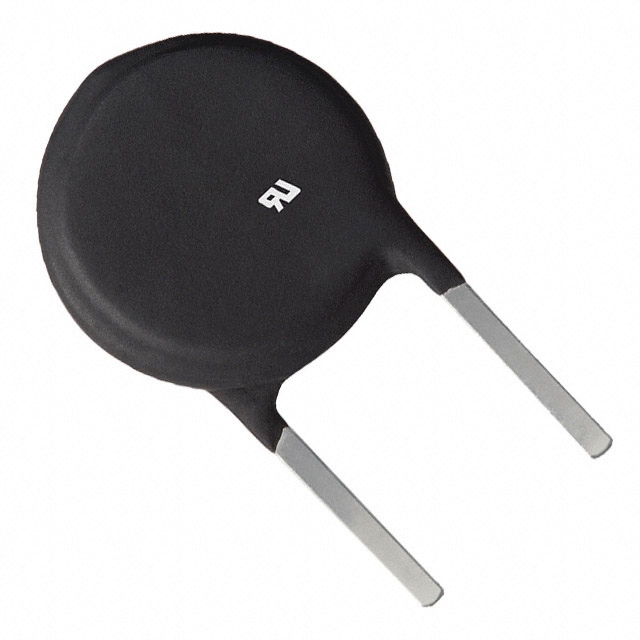

AS32 2R025 2 Ohms 25A Current Limiter

Description

We perform replacements upon request. Please contact us for more information and price.

Details and Specifications

• Resistance @ 25°C: 2.0 ohms ± 25 %.
• Max Steady State Current Up to 65°C: 25.0 A.
• Max recommended energy rating (Joules): 300.00 J.
• Actual failure point of instantaneous energy (Joules): 600.00 J.
• Resistance @ 100% of Max Current: 0.0185 ohms.
• Resistance @ 50% of Max Current: 0.039 ohms.
• Body Temperature @ 100% Current rating: 220 °C.
• Dissipation Constant: 78.20 mW/°C.
• Cool down time 50% of Initial R: 35.
• Cool down time 100% of Initial R: 69.
• ROHS Compliant.
• MSL (moisture sensitivity level): #2.
