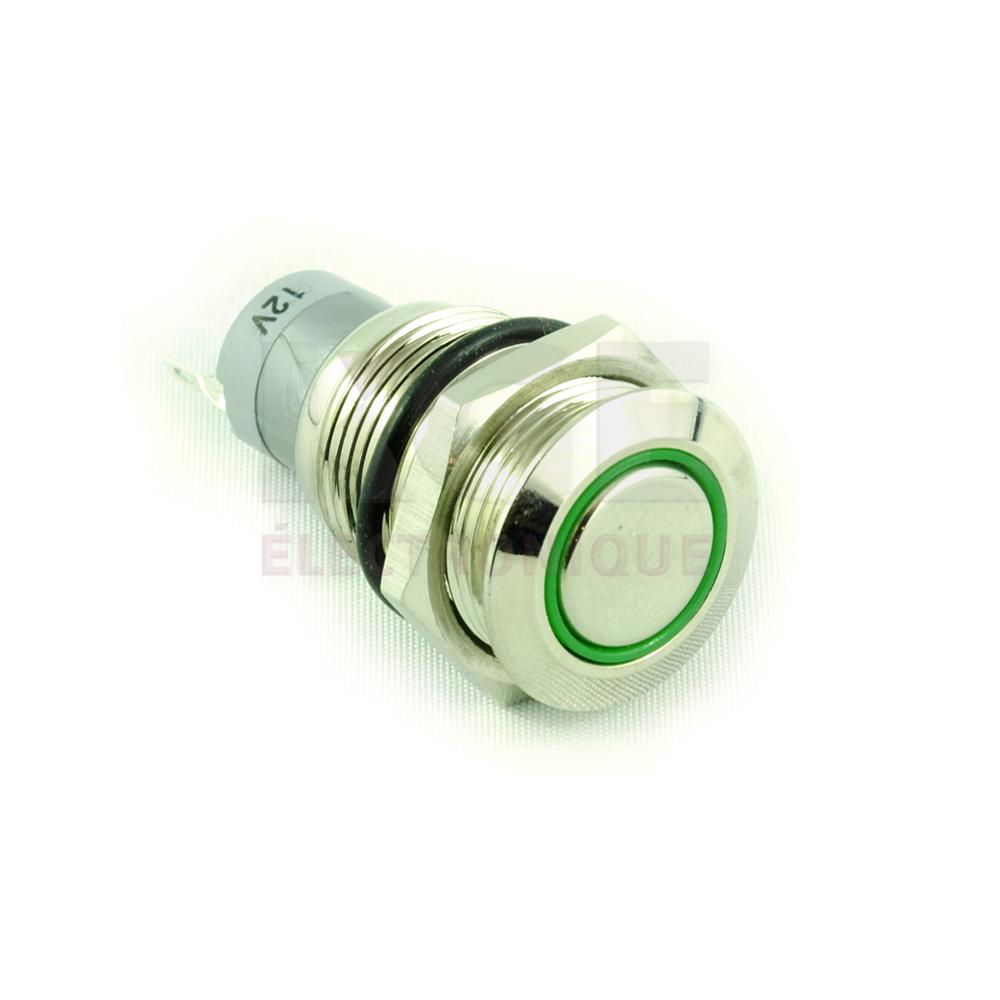

Green Illuminated 12V ON/OFF Push Switch
Web N°: 25-0139
$29.95
Green Illuminated 12V ON/OFF Push Switch
Green Illuminated 12V ON/OFF Push Switch
Green Illuminated 12V ON/OFF Push Switch
Out of stock
Green Illuminated 12V ON/OFF Push Switch
Green Illuminated 12V ON/OFF Push Switch
Green Illuminated 12V ON/OFF Push Switch

Green Illuminated 12V ON/OFF Push Switch

Web N°: 25-0139
$29.95

This product is out of stock.


Description

  • Tamper proof push button switch.
  • Mounts in 5/8” hole in panel up to 1/2” thick.
  • IP67 protection against dust and water.
  • LED illuminated ring around actuator (requires current limiting resistor).

Details and Specifications

  • Contact Rating: 3A, 250VAC; 2A, 24VDC.
  • Electrical Life: 50,000 cycles.
  • Initial Contact Resistance: 50m Ohm max.
  • Insulation Resistance: 500VDC 1000m Ohm min.
  • Dielectric Strength: 2000V RMS 50~60Hz.
  • Operating Temperature: -4°F ~ 158°F.
  • Switching Circuit: On - On (latching).
  • Torque: 5 ~ 14Nm max. applied to nut.
  • Operating Force: 5.5N max.
  • Type: SPDT.
  • Action: Push On - Push Off.
  • Actuator: Brass w/ Green LED.
