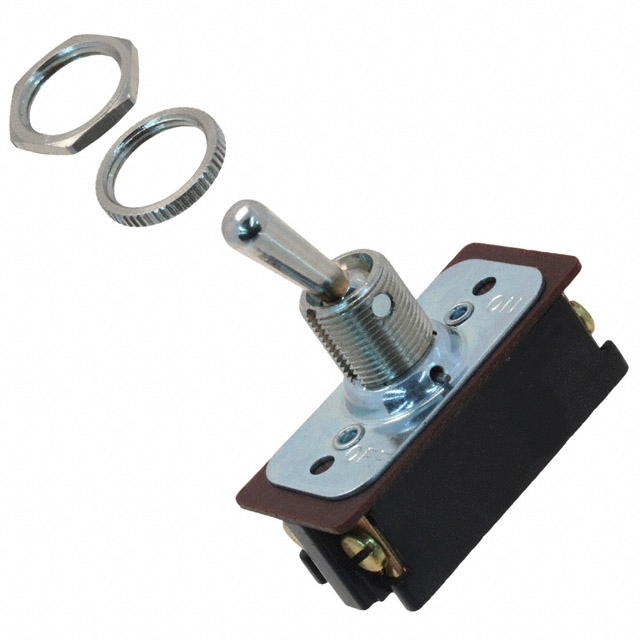

1HP 16A 125V DPST Toggle Switch
Web N°: 25-1388
$24.95
1HP 16A 125V DPST Toggle Switch
Web N°: 25-1388
$24.95
Details and Specifications
- Circuit: DPST
- Switch Function: On-Off
- Current Rating: 16A (AC)
- Voltage Rating - AC: 125V
- Horsepower: 1HP @ 125VAC - 250VAC
- Actuator Type: Standard Round
- Actuator Length: 17.45mm
- Mounting Type: Panel Mount
- Panel Cutout Dimensions: Circular - 12.70mm Diameter
- Termination Style: Screw Terminal
- Bushing Thread: 15/32-32
- Electrical Life: 25,000 Cycles
- Operating Temperature: -17.8°C ~ 65.6°C
