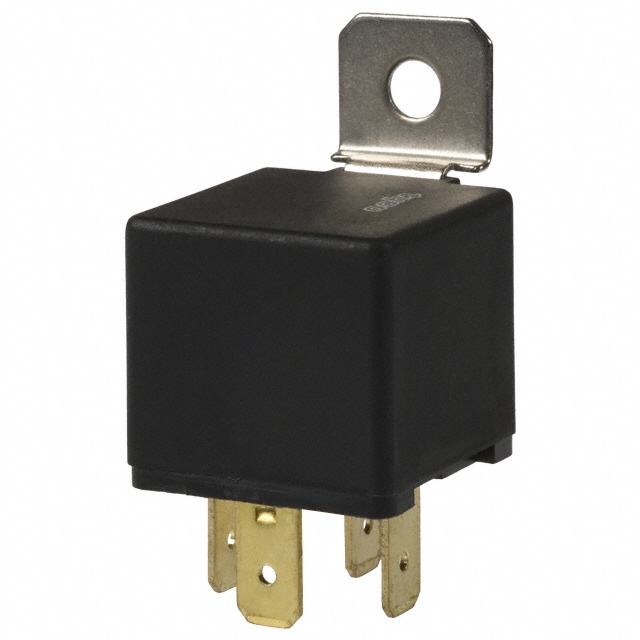

40A 24V SPDT Automotive Relay
Web N°: 25-1390
$11.95
40A 24V SPDT Automotive Relay
Web N°: 25-1390
$11.95
Details and Specifications
- Relay Type: Automotive
- Coil Type: Non Latching
- Coil Current: 66.7mA
- Coil Voltage: 24VDC
- Contact Form: SPDT (1 Form C)
- Contact Rating (Current): 40A
- Switching Voltage: 28VDC - Nom
- Turn On Voltage (Max): 15.6 VDC
- Turn Off Voltage (Min): 2.4 VDC
- Operate Time: 10ms
- Release Time: 13ms
- Has diode
- Mounting Type: Chassis Mount
- Termination Style: Plug In, QC - 0.250" (6.3mm)
- Contact Material: Silver Tin Oxide (AgSnO)
- Coil Power: 1.6 W
- Coil Resistance : 360 Ohms
- Operating Temperature: -40°C ~ 85°C
