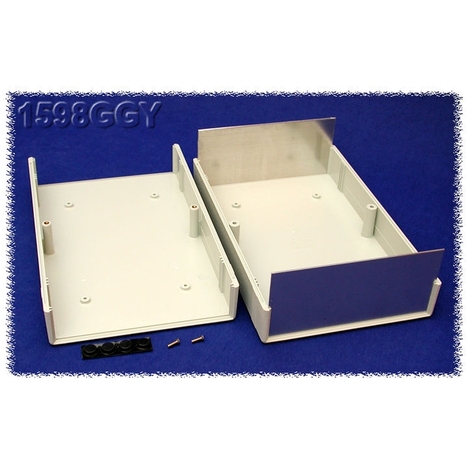

1598GSGY - General Purpose Plastic with Aluminum End Panels - 9.84" x 6.3" x 3"

Description

• Modern low profile designed instrument enclosure.
• Two sets of vertical 1.5 mm (0.062”) P.C. board guides are molded into case halves, front and rear.
• Economical matte textured grey plastic top & bottom halves.
• Molded in general purpose ABS plastic.
• Front and rear panels are 1.6 mm (0.064”) brushed aluminum with protective paper on one side.
• Easy access to interior via shell type construction.
• Designed to meet IP54.
• Integral horizontal P.C. card mounts on Eurocard centers. P.C. card standoffs molded into top & bottom half of enclosure
• 9.84" x 6.3" x 3" (250mm x 160mm x 76mm)
