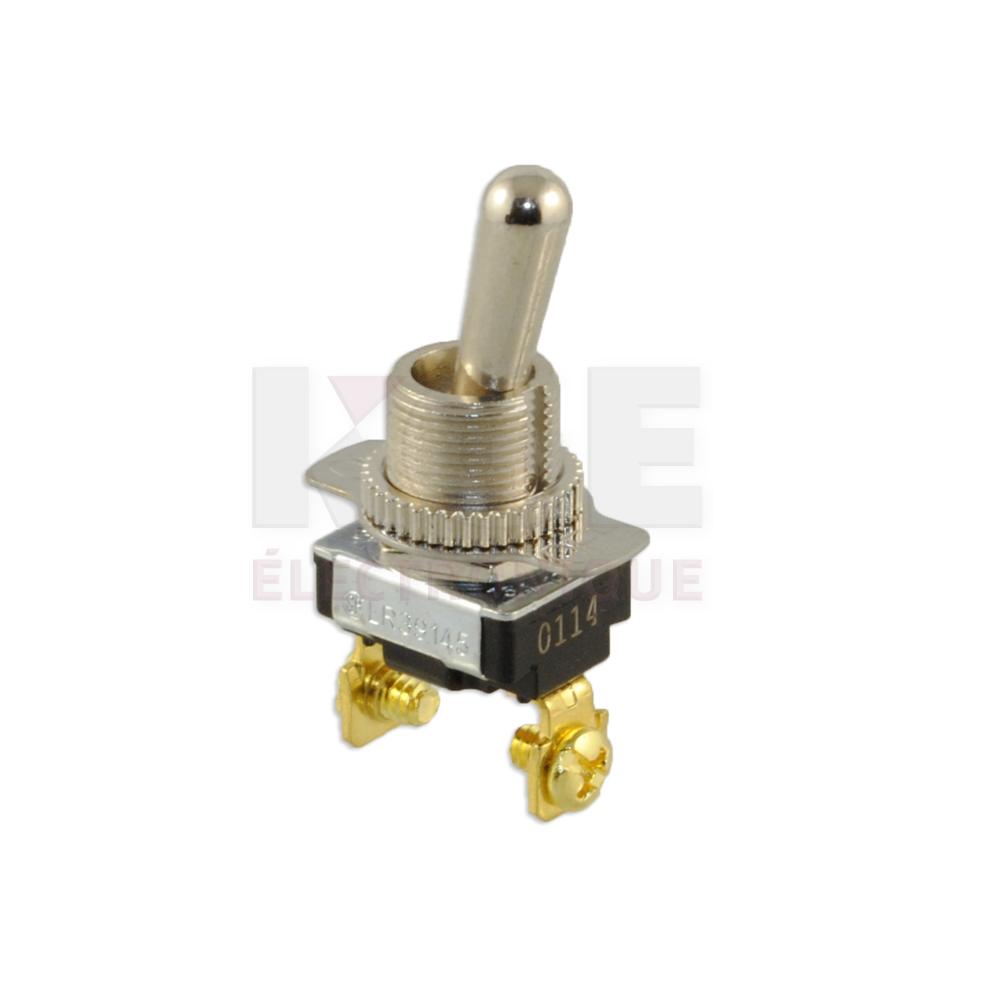

Standard Size SPST Toggle Switch ON/-/OFF
Web N°: 25-0189
$9.95
Standard Size SPST Toggle Switch ON/-/OFF
Web N°: 25-0189
$9.95
Details and Specifications
- Current Rating: 15A@125V AC, 10A@ 277V AC.
- Initial Contact Resistance: 50 Meg ohm (Max.).
- Insulation Resistance: 100 Meg ohm (Min.) @ 500V DC.
- Dielectric Strength: 1000V AC 50/60 Hz for 1 minute.
- Contact Material: Brass - Silver Plate.
- Terminal Material: Brass.
- Terminal Type: Screw.
