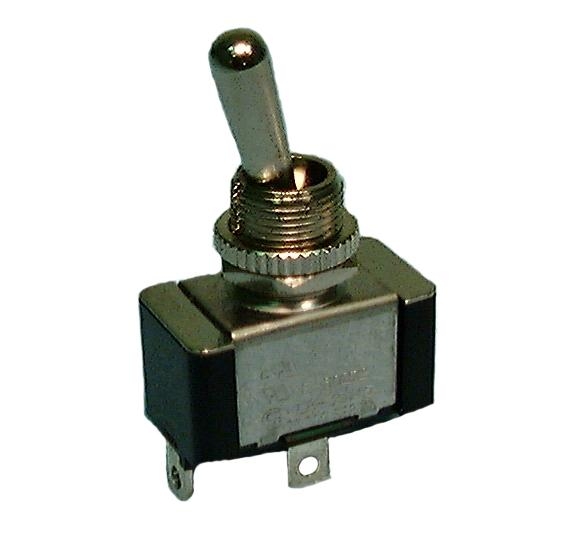

Heavy Duty SPST Toggle Switch (ON Momentary)/-/OFF
Web N°: 25-0196
$10.95
Heavy Duty SPST Toggle Switch (ON Momentary)/-/OFF
Web N°: 25-0196
$10.95
Details and Specifications
- Current Rating: 20A@125V AC, 10A@ 277V AC, 3/4 HP @ 125-250V AC.
- Initial Contact Resistance: 50 Meg ohm (Max.).
- Insulation Resistance: 100 Meg ohm (Min.) @ 500V DC.
- Dielectric Strength: 1000V AC 50/60 Hz for 1 minute.
- Contact Material: Brass - Bright Nickel Plate.
- Terminal Material: Brass - Tin Dipped.
- Terminal Type: Screw.
