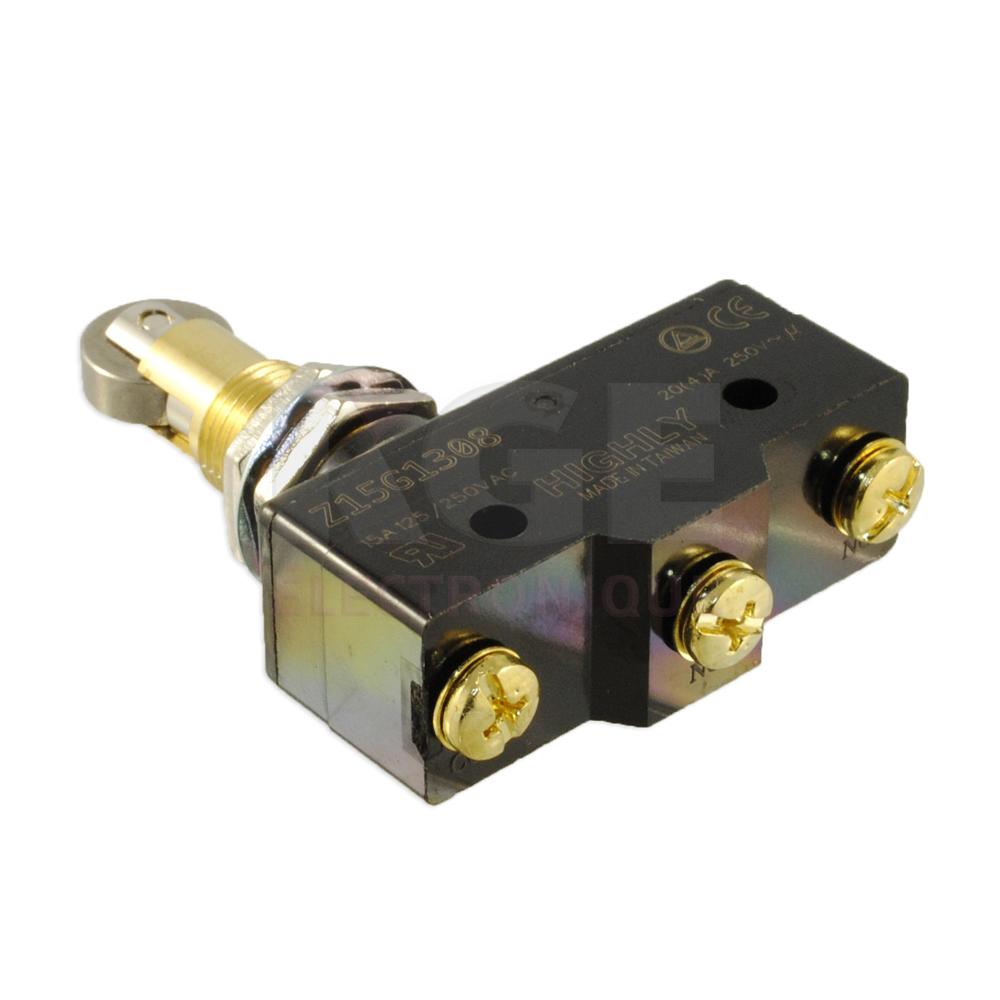

Heavy Duty SPDT Snap Action Switch with Roller Plunger
Web N°: 25-0173
$18.95
Heavy Duty SPDT Snap Action Switch with Roller Plunger
Web N°: 25-0173
$18.95
Details and Specifications
- Current Rating: 15A@ 125/250V AC, 1/2A@ 125V DC, 1/4 HP @ 250V DC, 1/8 HP @ 125V AC, 1/4 HP @ 250V AC.
- Initial Contact Resistance: 15 Meg ohms (max.).
- Insulation Resistance: 500V DC 1000 Meg ohm (Min.).
- Dielectric Strength: 1000V for 1 min.
- Contact Material: Silver.
- Terminal Material: Brass - Silver Plate.
- Terminal Type: Screw.
