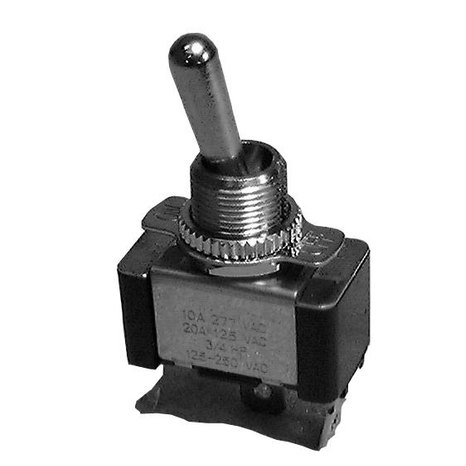

Heavy Duty SPST Toggle Switch (ON Momentary)/-/OFF
Web N°: 25-0009
$9.95
Heavy Duty SPST Toggle Switch (ON Momentary)/-/OFF
Web N°: 25-0009
$9.95
Details and Specifications
- Current Rating: 20A@125V AC, 10A@ 277V AC, 3/4 HP @ 125-250V AC.
- Initial Contact Resistance: 50 Mega ohms (max.).
- Insulation Resistance: 100 Mega ohms (min.) @ 500 VDC.
- Dielectric Strength: 1000V AC 50/60 Hz for 1 minute.
- Contact Material: Brass-Bright Nickel Plate.
- Terminal Material: Brass.
- Terminal Type: .250" Quick Connect.
