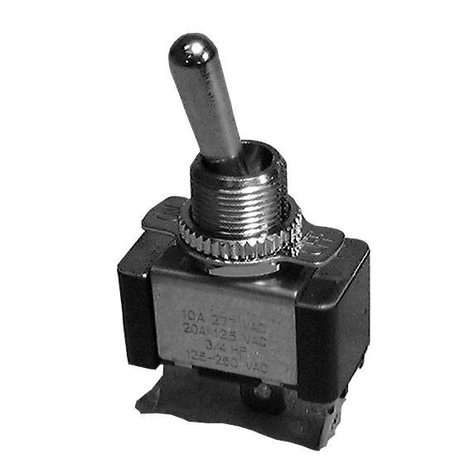

Heavy Duty SPST Toggle Switch ON/-/OFF
Web N°: 25-0190
$9.95
Heavy Duty SPST Toggle Switch ON/-/OFF
Out of stock

Heavy Duty SPST Toggle Switch ON/-/OFF

Web N°: 25-0190
$9.95

This product is out of stock.


Details and Specifications

  • Current Rating: 20A@125V AC, 10A@ 277V AC, 3/4 HP @ 125-250V AC.
  • Initial Contact Resistance: 50 Mega ohms (max.).
  • Insulation Resistance: 100 Mega ohms (min.) @ 500 VDC.
  • Dielectric Strength: 1000V AC 50/60 Hz for 1 minute.
  • Contact Material: Brass-Bright Nickel Plate.
  • Terminal Material: Brass.
  • Terminal Type: .250" Quick Connect.
