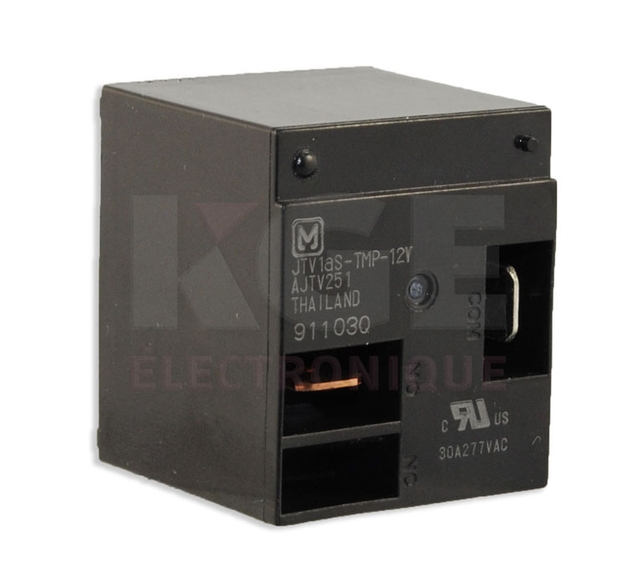

SPST-NO 30A 12VDC relais - JTV1AS-TMP-12V
Web N°: 25-1501
$19.95
SPST-NO 30A 12VDC relais - JTV1AS-TMP-12V
Web N°: 25-1501
$19.95
Description
Relay type: General Purpose Contact form: SPST-NO Contact rating (current): 30A Switching voltage: 277 VAC
- Max Coil type: Non latching Coil current: 83.3mA Coil voltage: 12 VDC Turn on voltage (Max): 9 VDC Turn off voltage (Min): 1.2 VDC Mounting type: Through hole Termination Style: PC Pin and 0.250" quick connect Features: Fully sealed Contact Material: Silver tin oxide (AgSnO) Operate time: 15 ms Release time: 10 ms Operating temperature: -55°C ~ 85°C Coil Power: 1 W Coil Resistance: 144 Ohms Lead free status: Lead free RoHS Status: RoHS compliant
