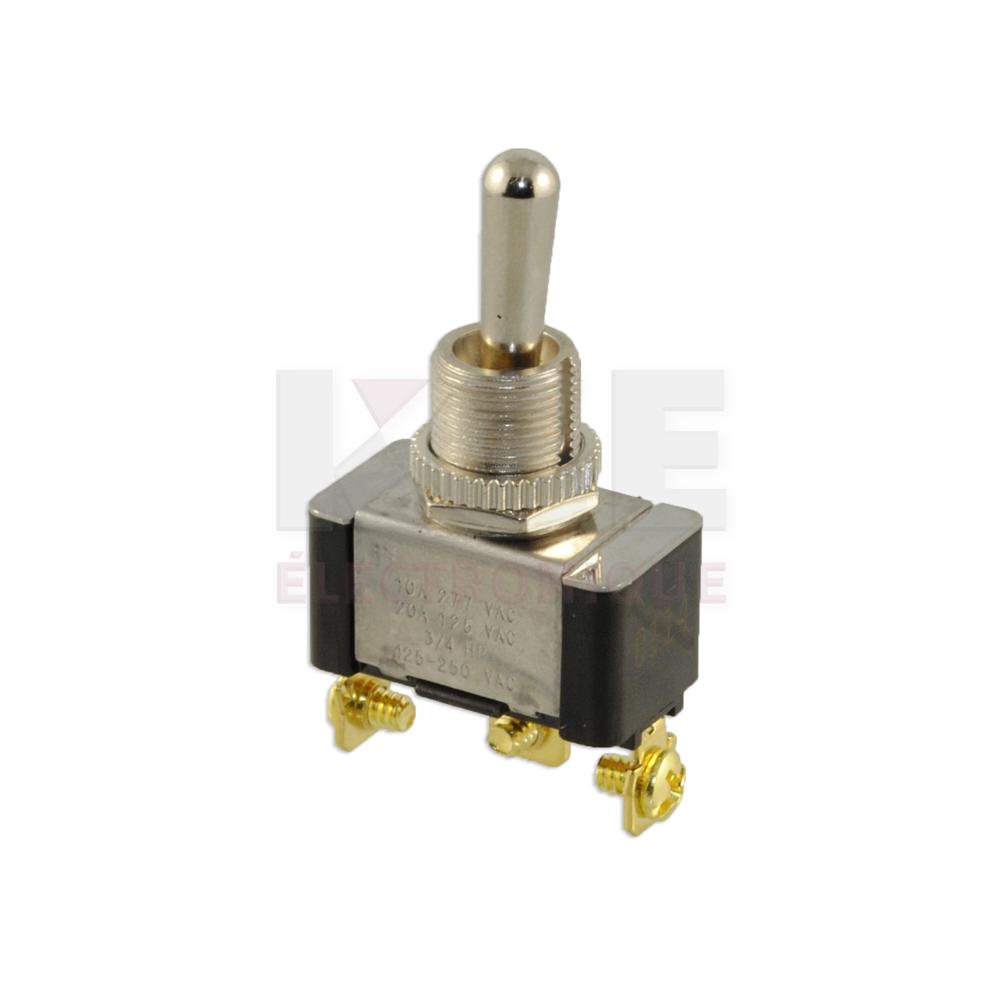

Heavy Duty Toggle Switch SPDT ON/OFF/(ON Momentary)
Web N°: 25-0776
$10.95
Heavy Duty Toggle Switch SPDT ON/OFF/(ON)

Heavy Duty Toggle Switch SPDT ON/OFF/(ON Momentary)

Web N°: 25-0776
$10.95

Quantity available : 4

Share
Add to my wish list

* Prices are in Canadian dollars. Taxes and shipping not included.

Our Store

Description

  • Current Rating: 20A@125V AC, 10A@ 277V AC, 3/4 HP @ 125/250V AC.
  • Initial Contact Resistance: 50 Meg ohm (Max.).
  • Insulation Resistance: 100 Meg ohm (Min.) @ 500V DC.
  • Dielectric Strength: 1000V AC 50/60 Hz for 1 minute.
  • Contact Material: Brass - Bright Nickel Plate.
  • Terminal Material: Brass.
  • Terminal Type: Screw.
