Description

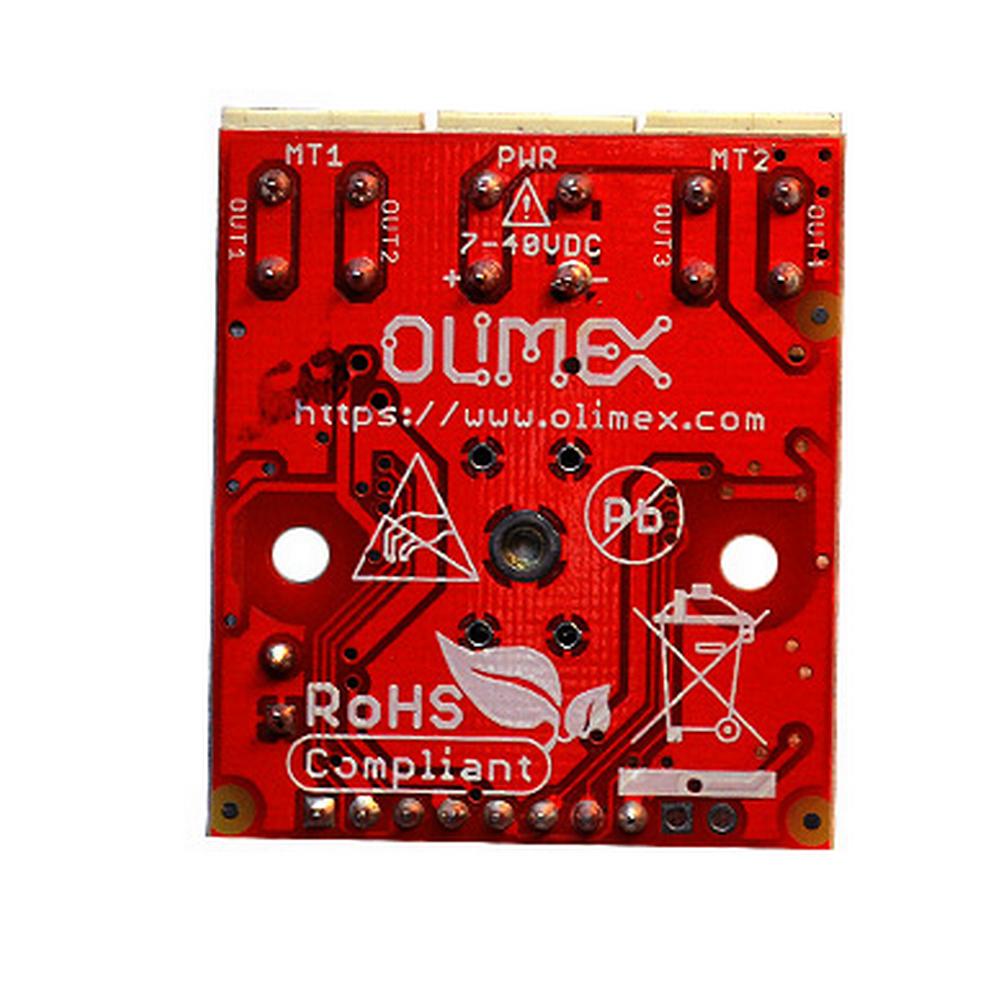

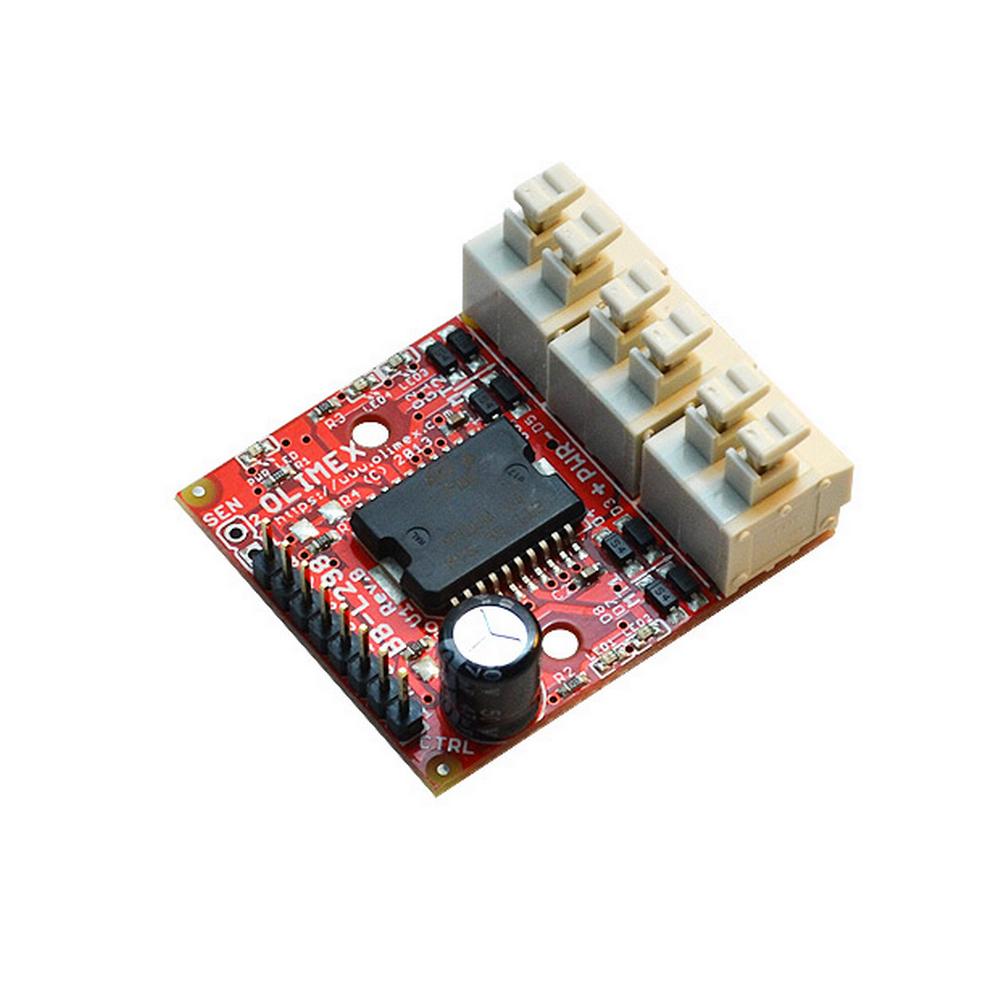

Looking for a reliable way to control your DC motors? The BB-L298 from Olimex is a dual full-bridge driver that supports up to 2.5A and 7–40V operating voltage. It’s perfect for robotics projects and compatible with popular microcontrollers like Arduino. With built-in status LEDs and spring-type connectors, setup is quick and intuitive. Ideal for gear motors with reverse functionality.
Features:
- Drives two motors independently
- Power and direction status LEDs
- Compatible with 5V logic boards
- Inductive load protection diodes included
Details and Specifications
| Parameter | Value |
|---|---|
| Driver IC | L298 Dual Full-Bridge Driver |
| Operating Voltage | 7V to 40V DC |
| Max Output Current | 2.5A per channel |
| Peak Output Current | Up to 3A (non-repetitive) |
| Logic Voltage | 5V |
| Enable/Input Voltage Range | –0.3V to 7V |
| Input Logic Level (Low) | = 1.5V |
| Input Logic Level (High) | = 2.3V |
| Power Dissipation | Up to 25W |
| Thermal Protection | Built-in overtemperature shutdown |
| Status Indicators | Power LED + Direction LEDs |
| Connectors | Spring-type motor/power terminals |
| Protection Diodes | Onboard inductive load protection |
| Dimensions | Approx. 50mm x 50mm (board size) |
| Mounting | 4 corner holes for standoffs |
| Compatibility | Arduino, OLIMEXINO, other 5V MCUs |
