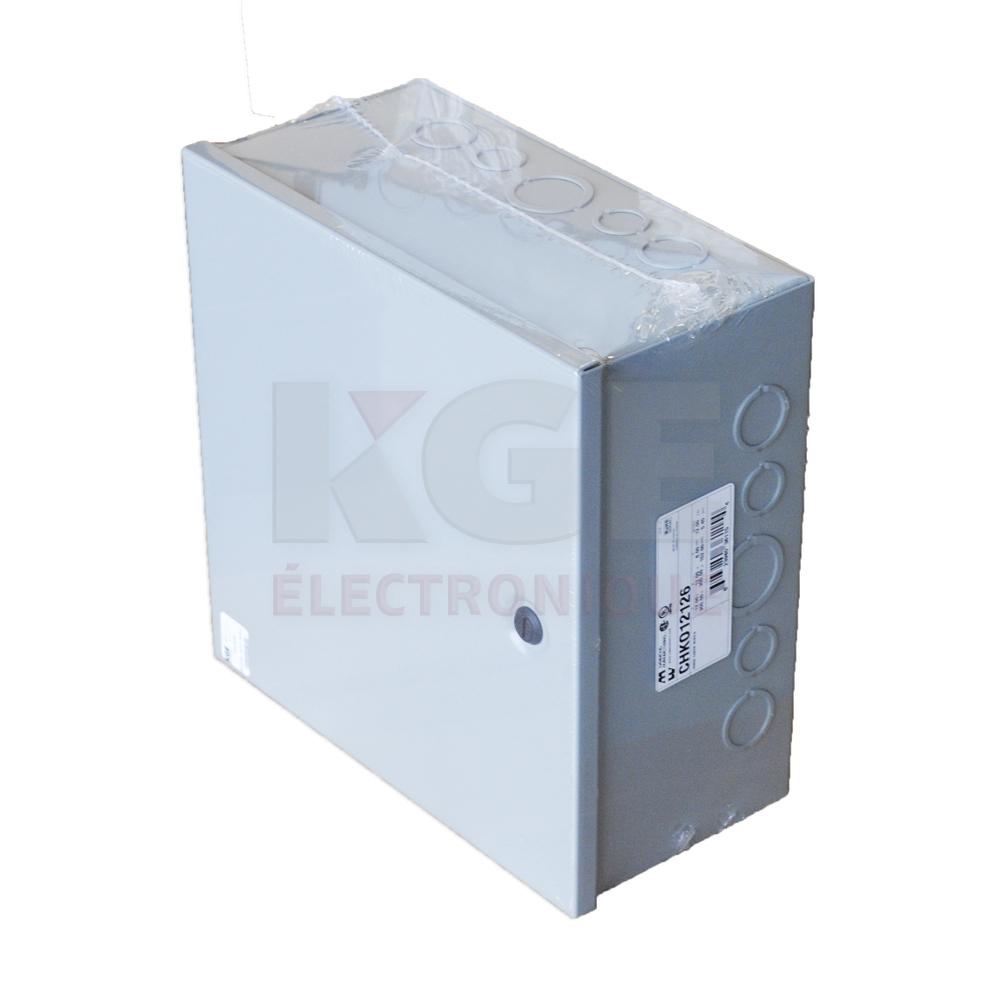

Type 1 Mild Steel Junction Box CHKO12126

Description

• Hinge Door with Quarter Turn and w/ Knockouts.
• Application:
  • Designed for general purpose indoor commercial use as a junction, pull or switch box.
  • Hinged cover with latch provides easy access during installation and maintenance.

Details and Specifications

• Standards:
  • UL-50 Type 1.
  • CSA Type 1.
• Complies with:
  • NEMA Type 1.
  • IEC 60529, IP20.

Construction:

• Formed and spot welded from 16 or 14 gauge steel depending on size.
• Formed steel covers close by use of slotted quarter turn latch.
• Full swing door using butt hinges.
• Easily removed knockouts on all 4 sides (see drawings for sizes and locations).
• Through holes in back for wall mounting.
• Grounding location embossed in body.

Finish:

• Enclosure and cover are finished in ANSI 61 gray powder coating.
• Dimensions: 12 x 12 x 6 inches.
