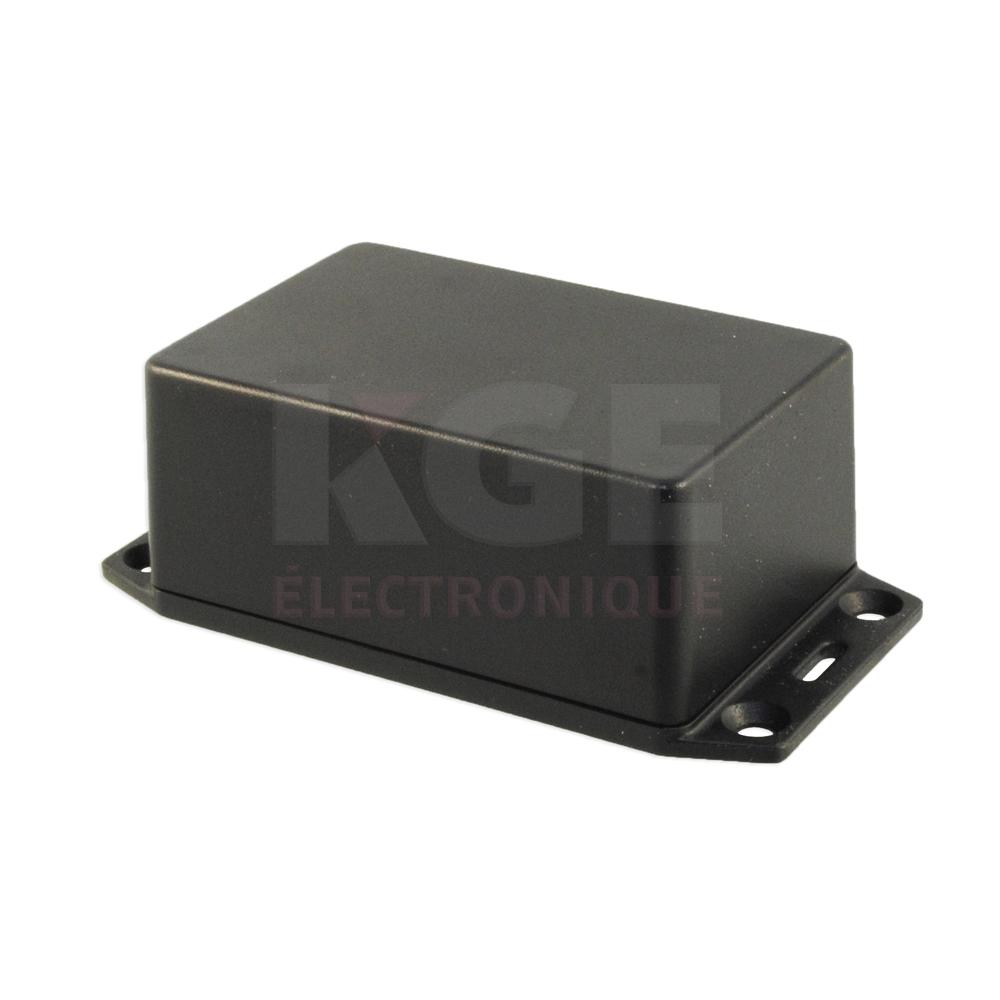

Multipurpose Plastic Enclosures - Flame Retardant ABS with Flanged Lid 1591XXLFLBK

Description

• Ideally suited for mounting printed circuit boards horizontally (for our internal ribbed enclosures - designed for vertical board mounting.
• Flanged lid is perfect for wall or shelf mounting and enclosure security.
• Internal sides of enclosure are smooth for easy connector installation (see photos) - except for the largest enclosure the 1591XXFL size which is a universal type.
• Strong - tongue and groove lid to box construction provides protection against access of dust and splashing water.
• Designed to meet IP54.
• Lid and box both contain - molded in PC board standoffs.
• Molded from easy to machine, flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).
• Stocked in satin texture black and grey.
• Lid is secured with M3 x 10 mm Philips machine screws, threaded into integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.
• Black enclosures include black screws, all others - standard nickel finish screws.

Details and Specifications

Dimension: 3.4 x 2.2 x 1.4 inches
