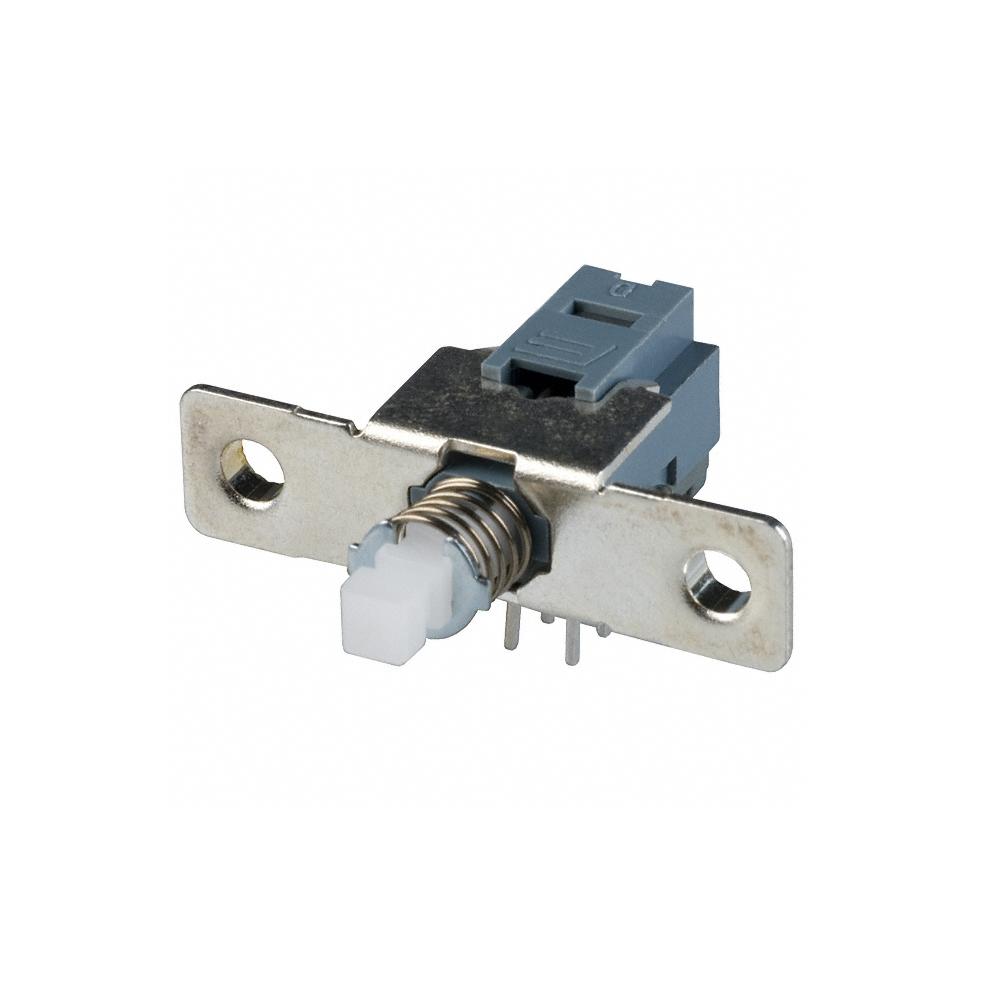

Push switch DPDT 0.1A 30V
Web N°: 25-1650
$1.95
Push switch DPDT 0.1A 30V

Push switch DPDT 0.1A 30V

Web N°: 25-1650
$1.95

Quantity available : 50

Share
Add to my wish list

* Prices are in Canadian dollars. Taxes and shipping not included.

Our Store

Description

  • Lead free / RoHS Compliant
  • Circuit: DPDT
  • Switch Function: On-On
  • Current Rating: 100mA (DC)
  • Voltage Rating DC: 30V
  • Actuator Type: Plunger for Cap
  • Color - Actuator/Cap: White
  • Mounting Type: Through Hole, Right Angle
  • Termination Style: PC Pin
  • Operating Temperature: -20°C ~ 70°C
  • Mechanical Life: 30,000 Cycles
  • Electrical Life: 10,000 Cycles
