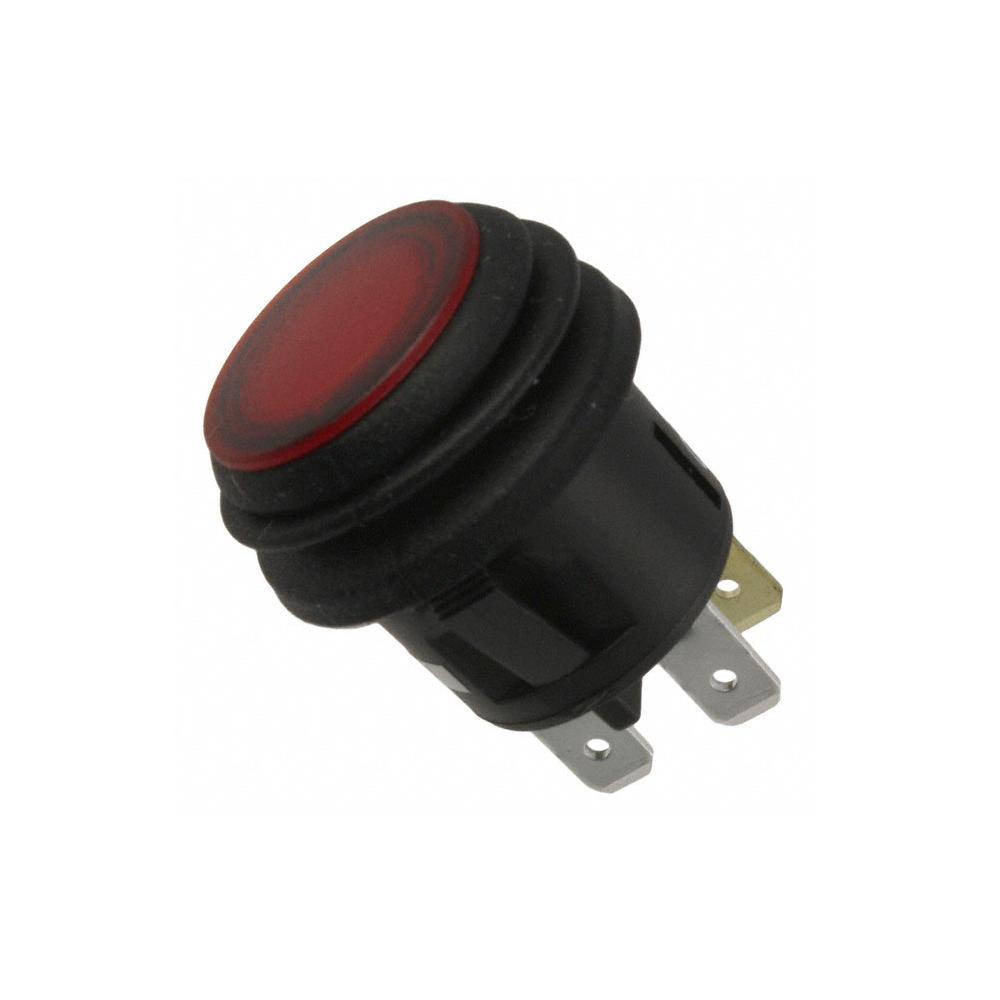

Push button switch SPST 10A 125V - red
Web N°: 25-1651
$11.95
Push button switch SPST 10A 125V - red
Web N°: 25-1651
$11.95
Description
- Lead free / RoHS compliant
- Circuit: SPST
- Switch function: Off-On
- Current rating: 10A (AC/DC)
- Voltage rating AC: 125V
- Voltage rating DC: 28V
- Actuator type: Round, Button
- Color Actuator/Cap: Red
- Illumination type, color: LED, Red
- Illumination voltage (nominal): 12 VDC
- Mounting type: Panel Mount, Snap-In
- Termination style: Quick Connect - 0.187" (4.7mm)
- Ingress protection IP65 - Dust Tight, Water Resistant
- Panel cutout dimensions: Circular - 20.20mm dia
- Operating temperature: -25°C ~ 85°C
