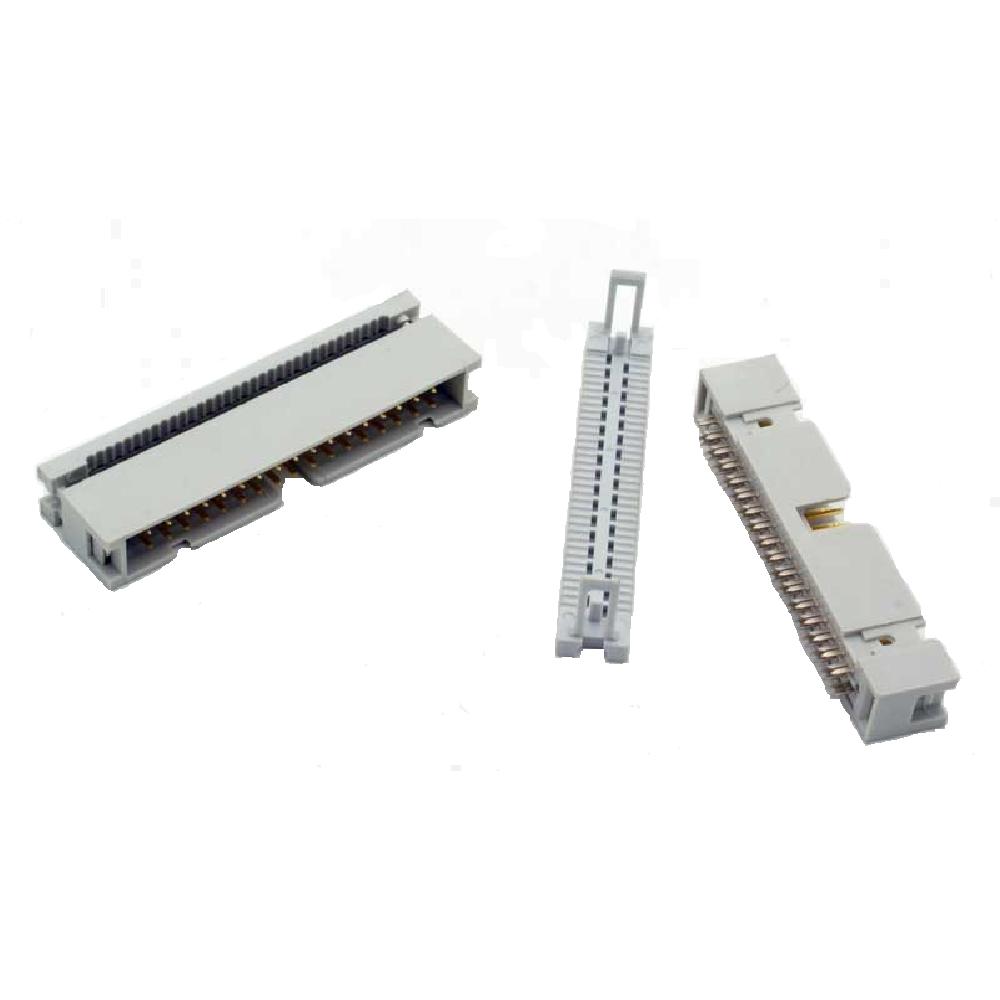

34-Position Insulation Displacement Dual Row Connector
Web N°: 26-1654
$1.95
34-Position Insulation Displacement Dual Row Connector
Web N°: 26-1654
$1.95
Description
- Fully interchangeable
- Easily removable molded cable strain relief
- Meets Mil-C-83503 Specifications
- Contact Resistance: 30m ohm max. at DC 100mA
- Insulator Resistance: 1000m ohm min. at DC 500V
- Current Rating: 1 Amp Dielectric Withstanding
- Voltage: AC 500V for 1 minute
- Operating Temperature: -55ºC - +105ºC
- Contact: Phosphor Bronze
- Housing: PBT & 30% Glass Fiber (UL 94V-0)
