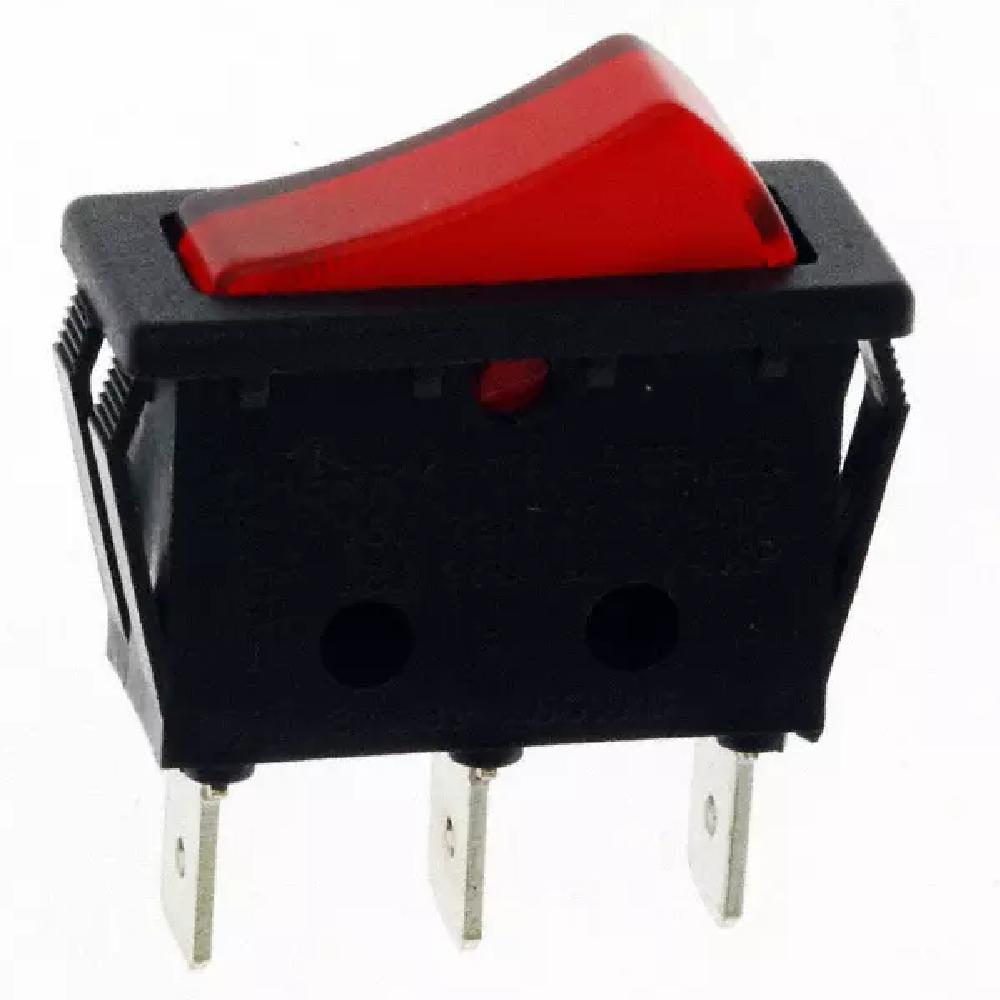

Rocker Switch SPST On_Off 15A 120VAC
Web N°: 25-1221
$3.95
Rocker Switch SPST On_Off 15A 120VAC
Web N°: 25-1221
$3.95
Description
Circuit SPST
Switch Function On-Off
Current Rating 15A (AC)
Voltage Rating - AC 125V
Voltage Rating - DC -
Actuator Type Concave (Curved) - Illuminated
Color - Actuator/Cap Red
Actuator Marking No Marking
Illumination Type, Color Neon, Red
Illumination Voltage (Nominal) 125 VAC
Mounting Type Panel Mount, Snap-In
Termination Style Quick Connect - 0.250" (6.3mm)
Ingress Protection -
Features -
Panel Cutout Dimensions Rectangular - 30.20mm x 11.00mm
Operating Temperature -20°C ~ 65°C
