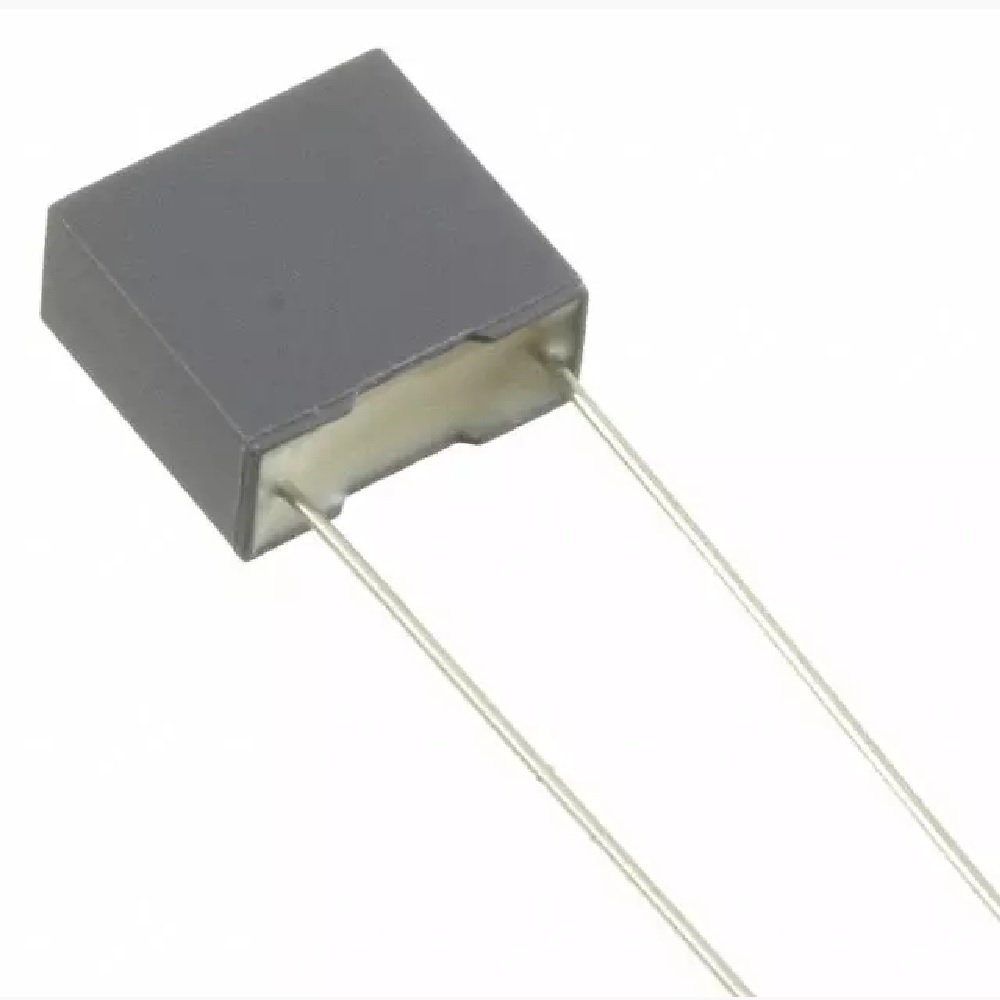

0.018µF Film Capacitor 250V 630V 2J183J
Web N°: 25-1767
$1.95
0.018µF Film Capacitor 250V 630V 2J183J
Web N°: 25-1767
$1.95
Description
Series R75
Packaging ? Bulk ?
Part Status Active
Capacitance 0.018µF
Tolerance ±5%
Voltage Rating - AC 250V
Voltage Rating - DC 630V
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) -
Operating Temperature -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 0.512" L x 0.197" W (13.00mm x 5.00mm)
Height - Seated (Max) 0.437" (11.10mm)
Termination PC Pins
Lead Spacing 0.394" (10.00mm)
Applications High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC)
