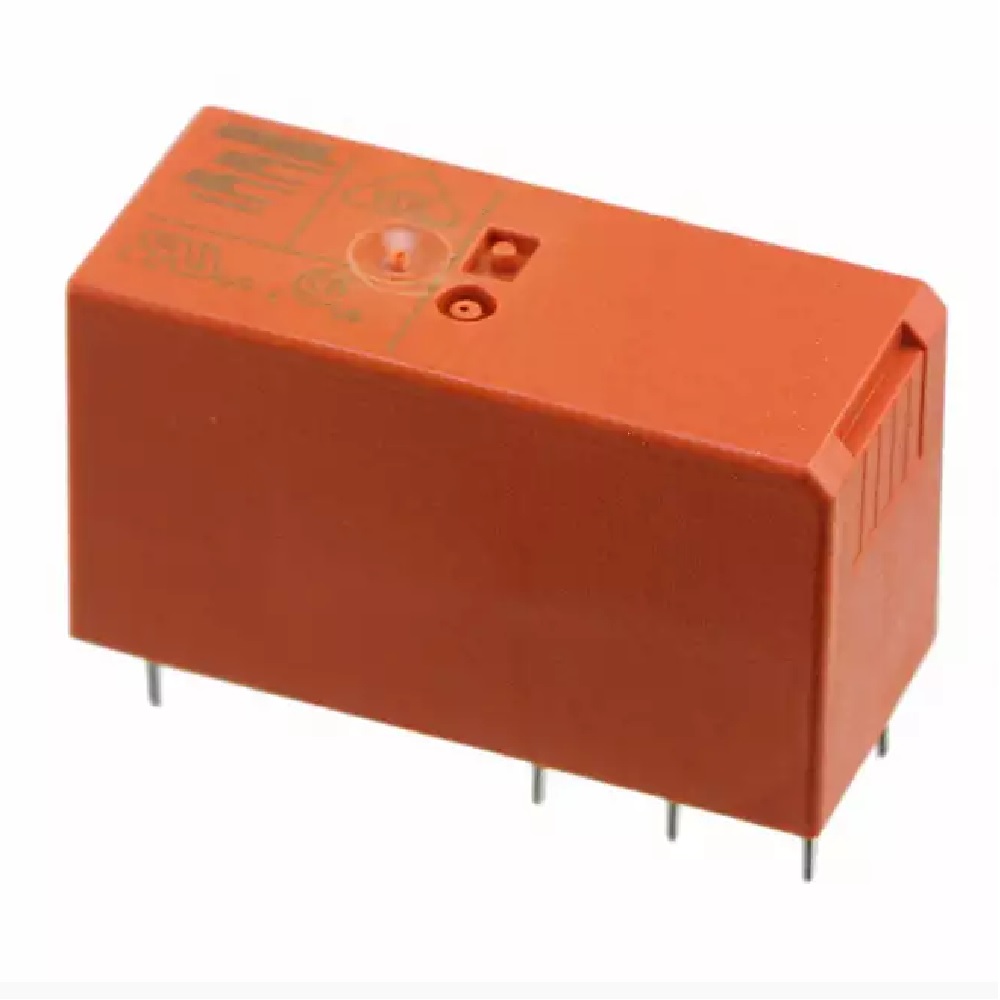

Relay Bistable Unipolar SPDT 16A 12V RT314F2
Web N°: 25-1733
$9.95
Relay Bistable Unipolar SPDT 16A 12V RT314F2
Web N°: 25-1733
$9.95
Description
Relay Type General Purpose
Coil Type Latching, Dual Coil
Coil Current 50mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 16A
Switching Voltage 400VAC - Max
Turn On Voltage (Max) 8.4 VDC
Turn Off Voltage (Min) -
Operate Time 10ms
Release Time 10ms
Features Insulation - Class F, Sealed - Flux Protection
Mounting Type Through Hole
Termination Style PC Pin
Contact Material Silver Nickel (AgNi)
Coil Power 600 mW
Coil Resistance 240 Ohms
Operating Temperature -40°C ~ 85°C
