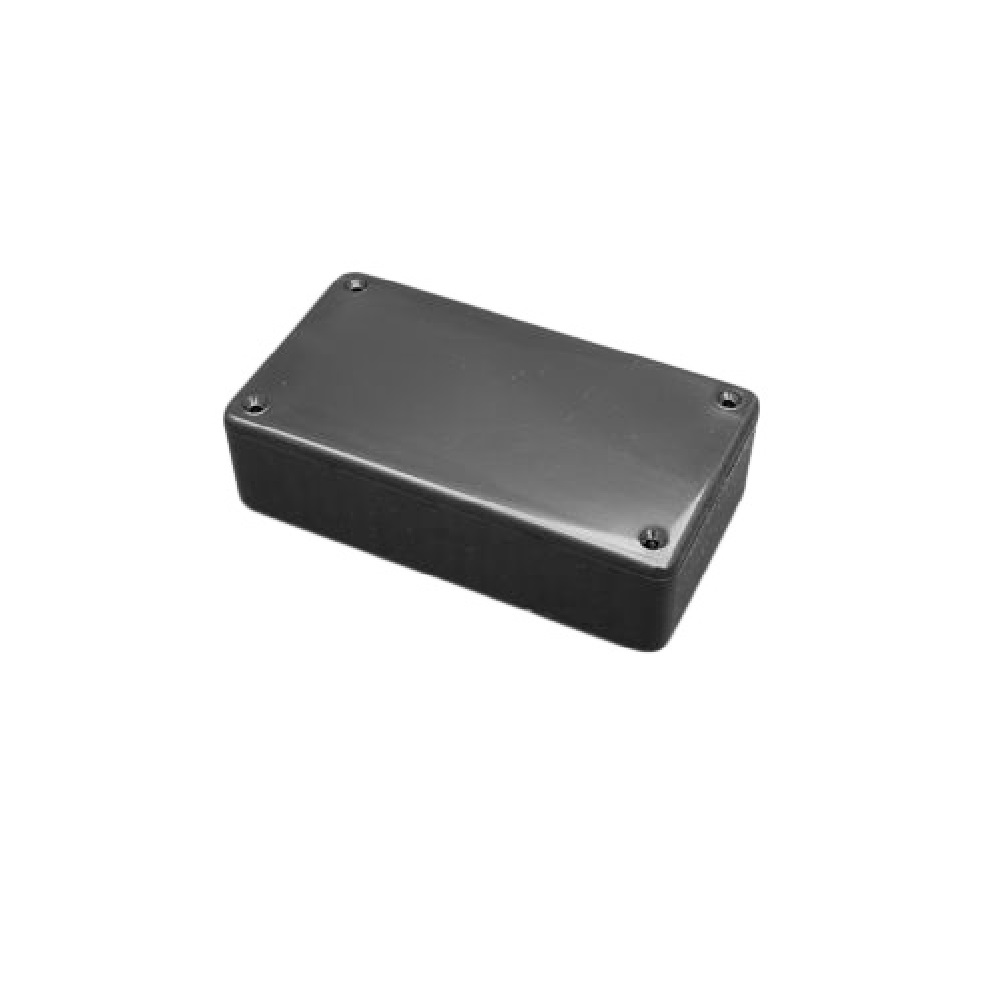

ABS Plastic Multipurpose Enclosures w/ Card Guides - 1591SFLBK

Description

• Length: 4.30"
• Width: 3.20"
• Depth: 1.60"
• Ideally suited for vertical mounting of printed circuit boards (internal side walls include molded in card guides - see photo to the right).
• Integral card guides accept 1.5 mm (0.062”) P.C. cards.
• Lap joint construction provides protection against access of dust and splashing water.
• Designed to meet IP54.
• Standard versions are molded from easy to machine flame retardant ABS plastic which carries a UL flammability rating of 94V-0.
• Economy versions are molded from general purpose (not flame-retardant) plastic.
• On standard versions the lid is secured with M3 x 10 mm Phillips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required (see photo below to the right).
• Economy versions are assembled with self tapping screws into fully plastic posts.
• Black enclosures include black screws, all others - standard nickel finish screws.
