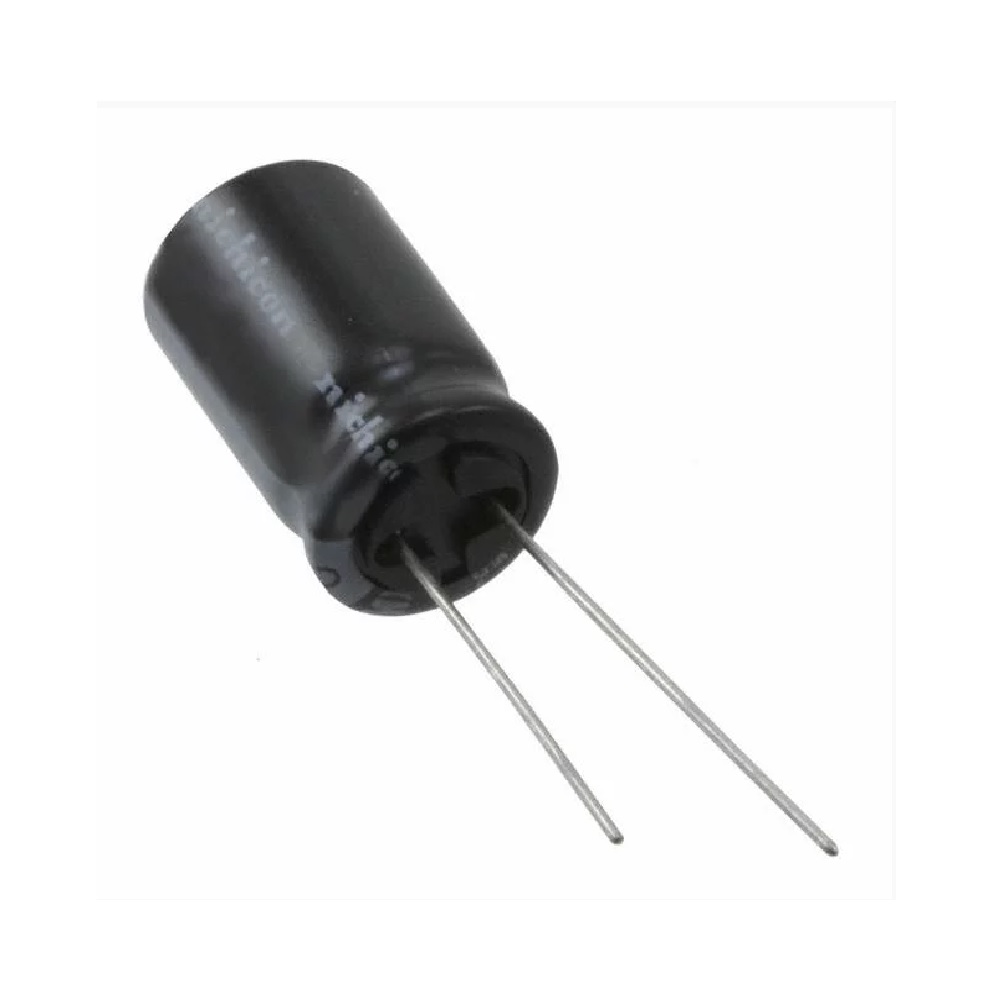

Capacitor Aluminium 33UF 20% 450V Radial
Web N°: 25-2001
$2.95
Capacitor Aluminium 33UF 20% 450V Radial
Web N°: 25-2001
$2.95
Description
Capacitance 33µF
Tolerance ±20%
Voltage - Rated 450V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 1000 Hrs @ 105°C
Operating Temperature -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 165mA @ 120Hz
Ripple Current @ High Frequency 264mA @ 10kHz
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 1.456" (37.00mm)
