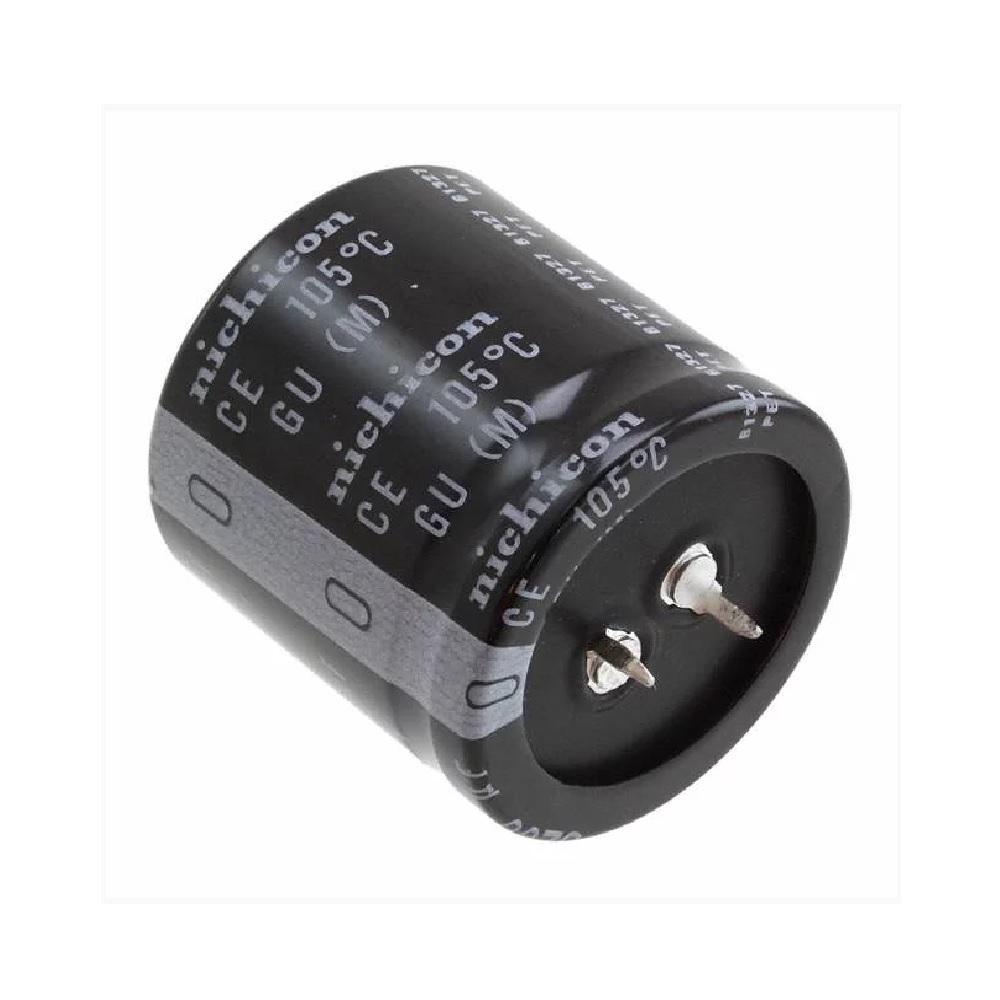

Capacitor 8200uF Aluminium 50V
Web N°: 25-2153
$9.95
Capacitor 8200uF Aluminium 50V
Web N°: 25-2153
$9.95
Description
Capacitance 8200µF
Tolerance ±20%
Voltage - Rated 50V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 105°C
Operating Temperature -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 3.66A @ 120Hz
Ripple Current @ High Frequency 4.209A @ 50kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.378" Dia (35.00mm)
Height - Seated (Max) 1.457" (37.00mm)
