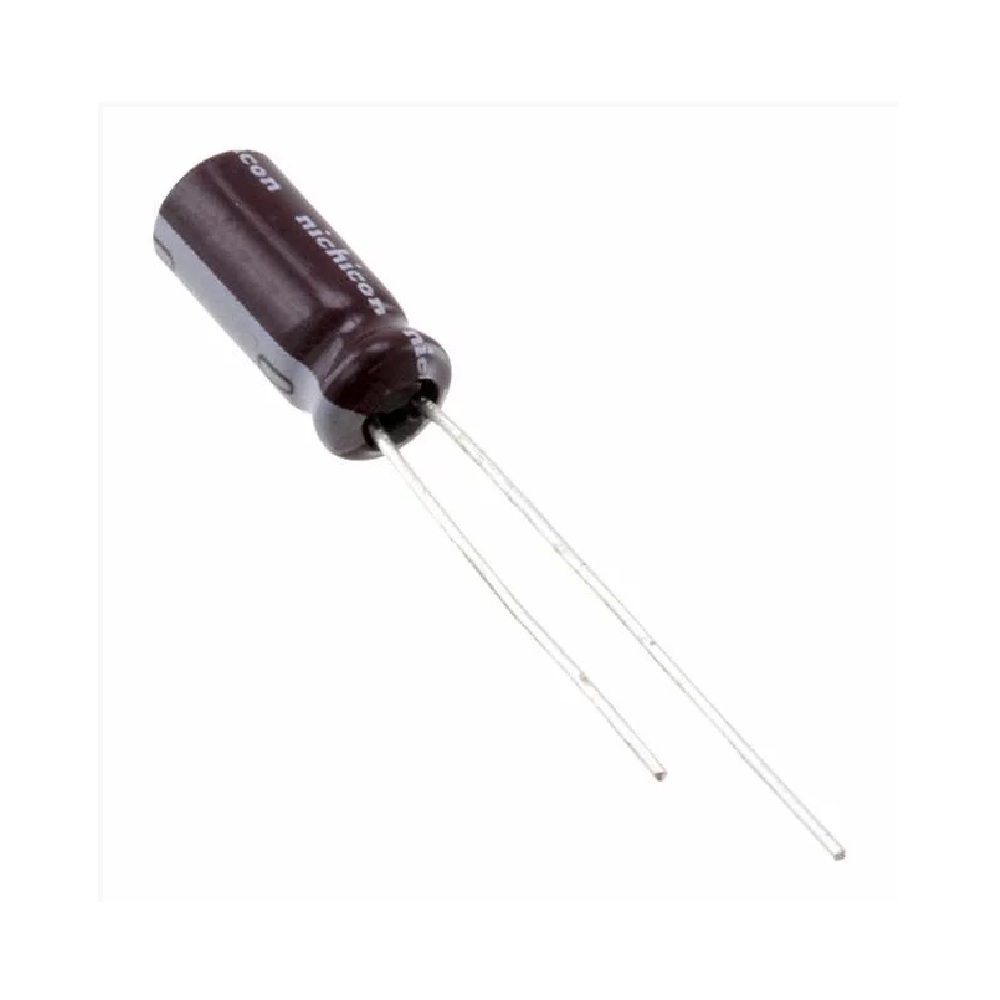

Capacitor 47uF 25V
Web N°: 25-1885
$0.45
Capacitor 47uF 25V
Web N°: 25-1885
$0.45
Description
Capacitance 47µF
Tolerance ±20%
Voltage - Rated 25V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Operating Temperature -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 27.2mA @ 120Hz
Ripple Current @ High Frequency 160mA @ 100kHz
Impedance 1.5 Ohms
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
